CB3-H 24inch 36V 250W hub drive motor city ebike

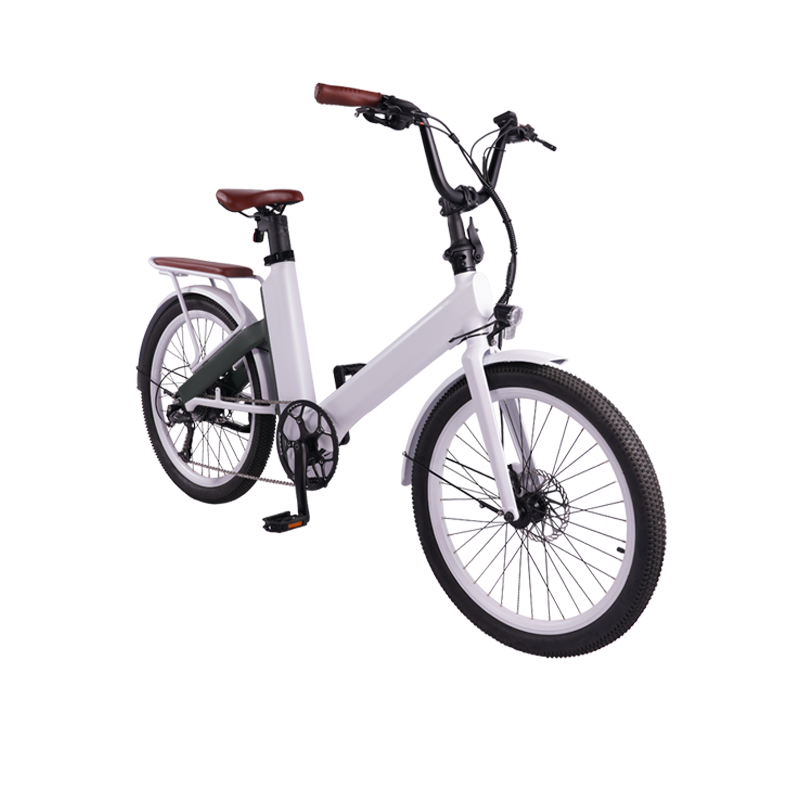

Designed for urban commuting, this men's e-bike features a practical grey aluminum frame with clean aesthetics. Powered by a 36V 250W rear hubbed motor and a dependable gear system, it delivers efficient, smooth rides. A budget-friendly choice offering reliable performance for everyday city travel.

Color: white
Overview Geometry Specs
Cadence
60+ Kms
250 W
360 Wh
25 Km/h
7-Speed
240 lb.
Hydraulic
Geometry


A: SEAT TUBE LENGTH (mm)
B: SEAT TUBE ANGLE
C: TOP TUBE LENGTH (mm)
D: HEAD TUBE LENGTH (mm)
E: HEAD TUBE ANGLE
F: FORK RAKE (mm)
G: TRAlL (mm)
H: WHEELBASE(mm)
I: CHAIN STAY LENGTH (mm)
J: BOTTOM BRACKET DROP (mm)
K: STACK (mm)
L: REACH (mm)
M: STAND OVER HEIGHT (mm)
N: HANDLEBAR WIDTH (mm)
O: STEM LENGTH (mm)
P: WHEEL SIZE
24''
Q: Min Saddle Height(mm)
R: Max Saddle Height(mm)
Specs
Electric system
Motor
36V/250W Hub Drive motor
Controller
36V 15A sine wave controller
Battery
36V/10Ah LG/SAMSUNG 3500 cells 504Wh
Charger
36V/2A
Throttle
Optional
Sensor
12P Cadence sensor
Display

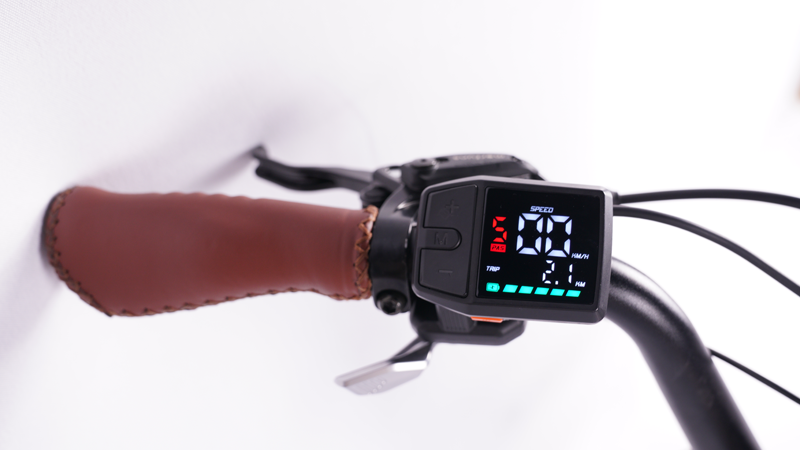

LCD display (with Bluetooth) integrated inside the frame
Headlight
36V LED light
Taillight
36V LED light
Main compents
Frame
24 inch Aluminum Alloy 6061
Front fork
Aluminum Rigid Front Fork
Tires
24"X2.4" tires
Chainwheel
44T
Chain
KMC Anti-Rust 7 speed

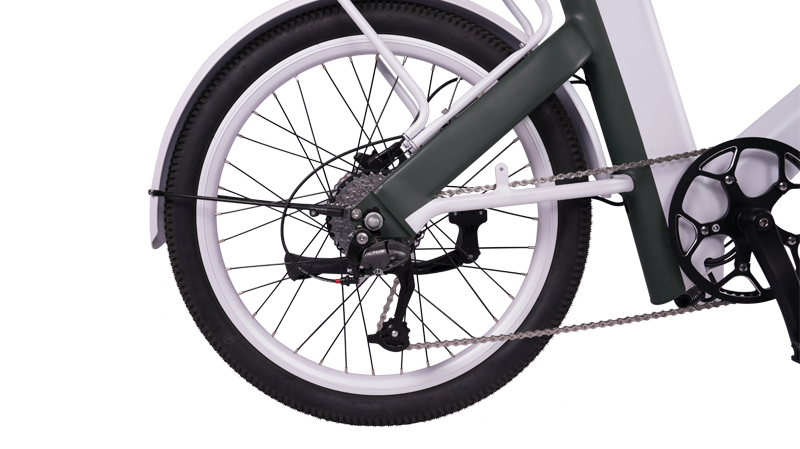

Derailleur system
SHIMANO 7 speed
Brake
Hydraulic disc brake
Rotors
F:160mm R:160mm
Performance
Max speed
25 Km/h
Max torque
37 N.m
Range
Level 1:  60--70Km/Level 5: 35-40km
Charging time
About 5H
Max Load
Recommend no more than 240 lb.
