CB2-H 36V 250W bafang hub drive motor city ebike

Designed for urban commuting, this men's e-bike features a practical grey aluminum frame with clean aesthetics. Powered by a 36V 250W rear hubbed motor and a dependable gear system, it delivers efficient, smooth rides. A budget-friendly choice offering reliable performance for everyday city travel.

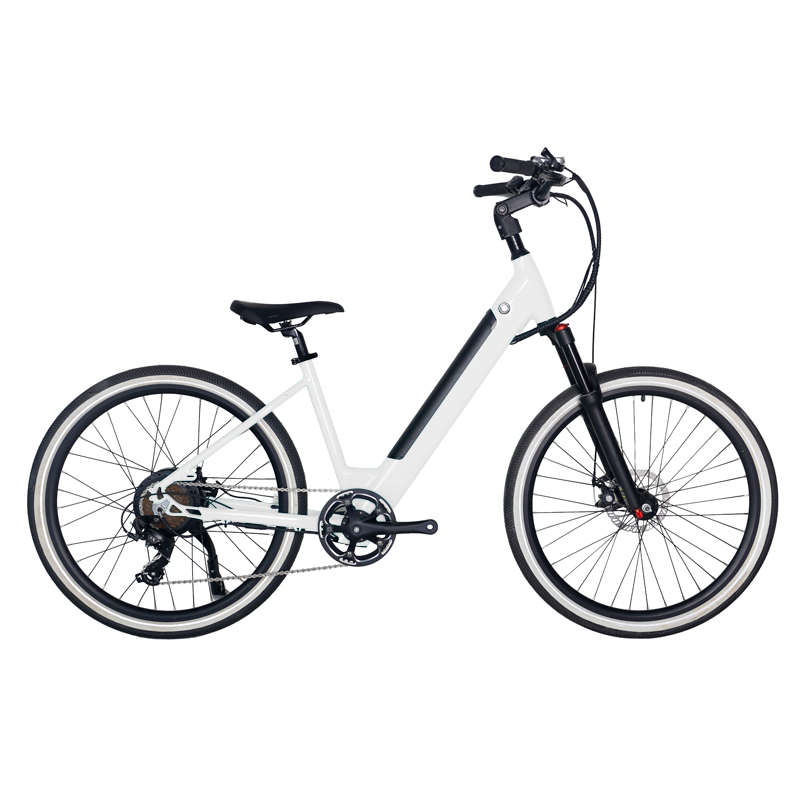

Color: white
Overview Geometry Specs
Cadence
60+ Kms
250 W
417.6 Wh
25 Km/h
7-Speed
240 lb.
Mechanical

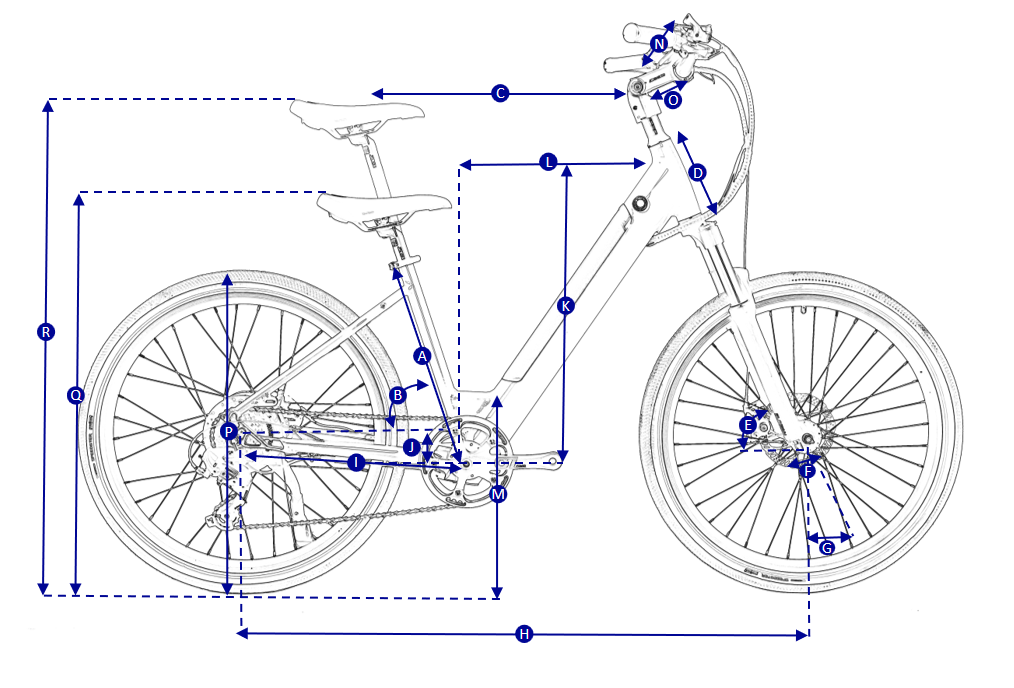

Geometry


A: SEAT TUBE LENGTH (mm)
430
B: SEAT TUBE ANGLE
65.3°
C: TOP TUBE LENGTH (mm)
515
D: HEAD TUBE LENGTH (mm)
160
E: HEAD TUBE ANGLE
69°
F: FORK RAKE (mm)
21
G: TRAlL (mm)
42
H: WHEELBASE(mm)
1046
I: CHAIN STAY LENGTH (mm)
435
J: BOTTOM BRACKET DROP (mm)
65
K: STACK (mm)
640
L: REACH (mm)
389
M: STAND OVER HEIGHT (mm)
392
N: HANDLEBAR WIDTH (mm)
620
O: STEM LENGTH (mm)
50
P: WHEEL SIZE
26''
Q: Min Saddle Height(mm)
800
R: Max Saddle Height(mm)
1000
Specs
Electric system
Motor

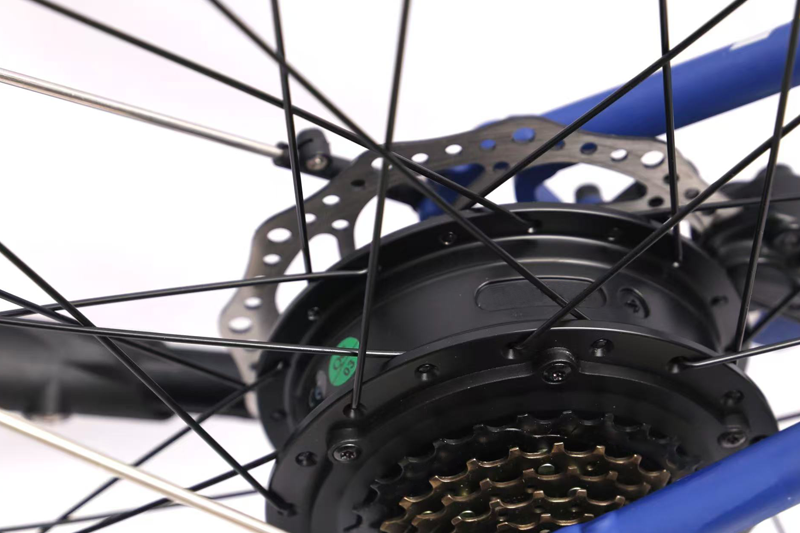

BAFANG H305 36V/250W Hub Drive motor
Controller
36V 15A sine wave controller
Battery
36V/11.6Ah LG/SAMSUNG 3500 cells 504Wh
Charger
36V/2A
Throttle
Optional
Sensor
12P Cadence sensor
Display

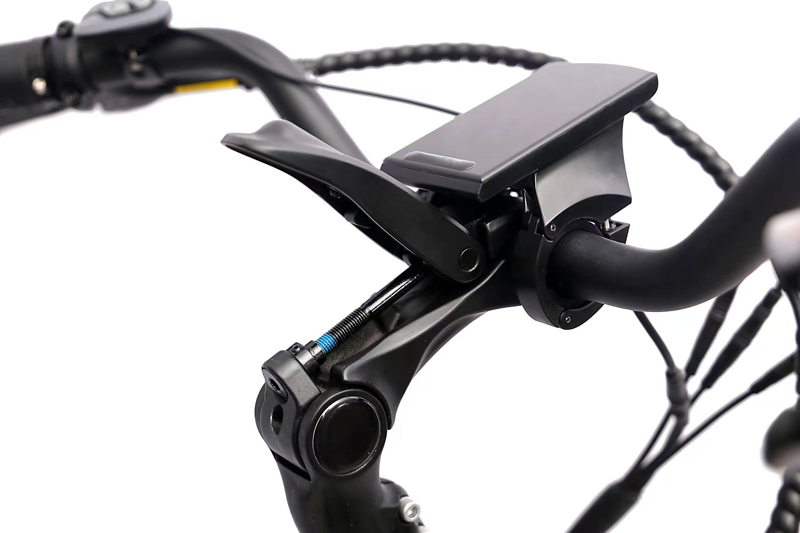

LCD display (with Bluetooth) integrated inside the frame
Headlight
36V LED light
Taillight
Optional
Main compents
Frame
26 inch Aluminum Alloy 6061
Front fork
RST 100mm hydraulic suspension fork with adjustable damping
Tires
Kenda 26"X2.0" tires
Chainwheel
Prowheel 42T
Chain
KMC Anti-Rust 7 speed
Derailleur system
SHIMANO 7 speed
Brake
ZOOM Mechanical disc brake
Rotors
F:160mm R:160mm
Performance
Max speed
25 Km/h
Max torque
40N.m
Range
Level 1:  60--70Km/Level 5: 40-45km
Charging time
About 6H
Max Load
Recommend no more than 240 lb.
