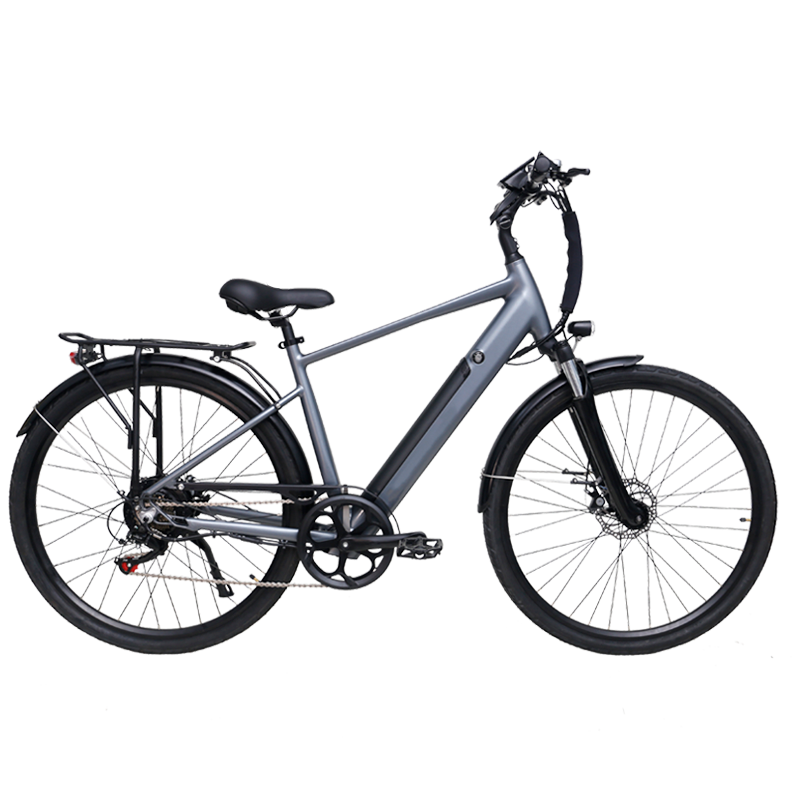

CB1-H 36V 250W bafang hub drive motor city ebike

Designed for urban commuting, this men's e-bike features a practical grey aluminum frame with clean aesthetics. Powered by a 36V 250W rear hubbed motor and a dependable gear system, it delivers efficient, smooth rides. A budget-friendly choice offering reliable performance for everyday city travel.

Color: white
Overview Geometry Specs
Cadence
60+ Kms
250 W
417.6 Wh
25 Km/h
7-Speed
240 lb.
Mechanical

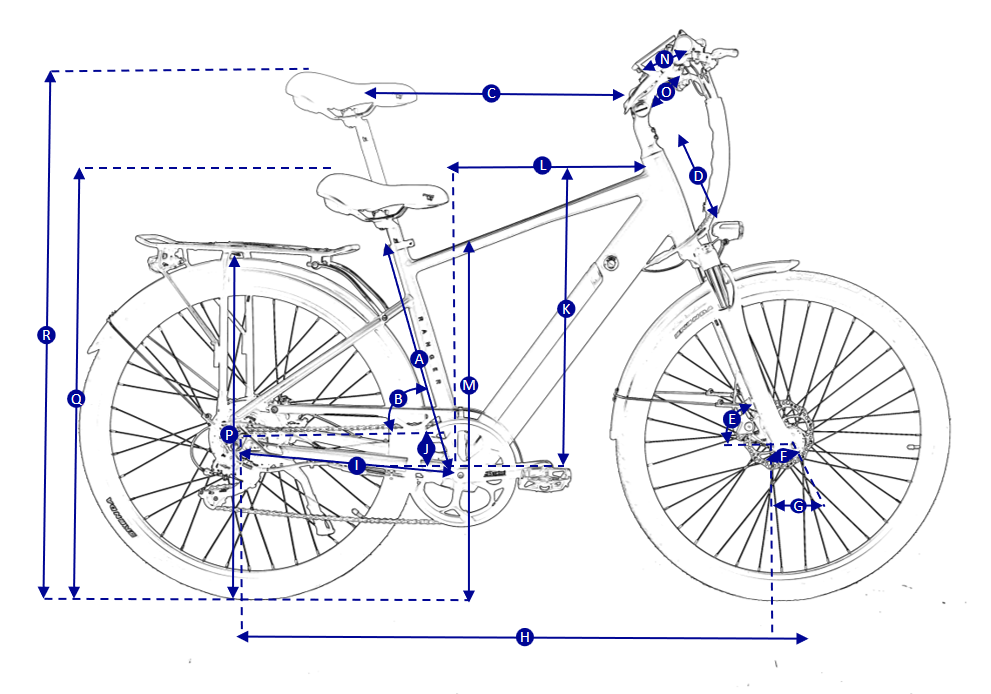

Geometry


A: SEAT TUBE LENGTH (mm)
485
B: SEAT TUBE ANGLE
64.5°
C: TOP TUBE LENGTH (mm)
544
D: HEAD TUBE LENGTH (mm)
160
E: HEAD TUBE ANGLE
69°
F: FORK RAKE (mm)
21
G: TRAlL (mm)
42
H: WHEELBASE(mm)
1088
I: CHAIN STAY LENGTH (mm)
455
J: BOTTOM BRACKET DROP (mm)
65
K: STACK (mm)
650
L: REACH (mm)
390
M: STAND OVER HEIGHT (mm)
761
N: HANDLEBAR WIDTH (mm)
680
O: STEM LENGTH (mm)
50
P: WHEEL SIZE
700C
Q: Min Saddle Height(mm)
820
R: Max Saddle Height(mm)
1020
Specs
Electric system

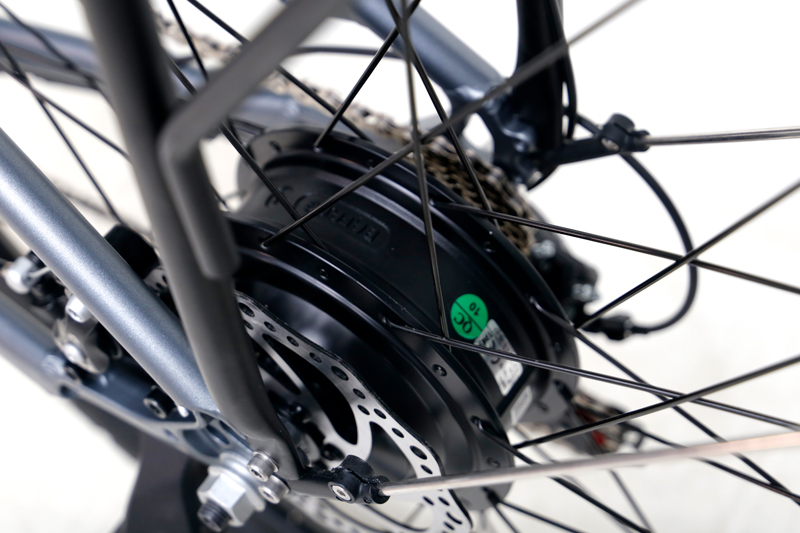

Motor
BAFANG H305 36V/250W Hub Drive motor
Controller
36V 15A sine wave controller
Battery
36V/11.6Ah LG/SAMSUNG 3500 cells 504Wh
Charger
36V/2A
Throttle
Thumb throttle
Sensor
12P Cadence sensor
Display
LCD display (with Bluetooth) integrated inside the frame

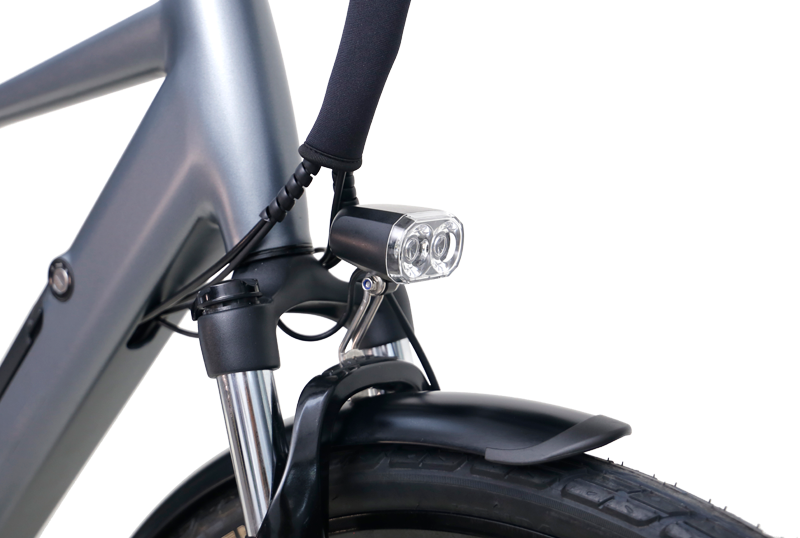

Headlight
36V LED light

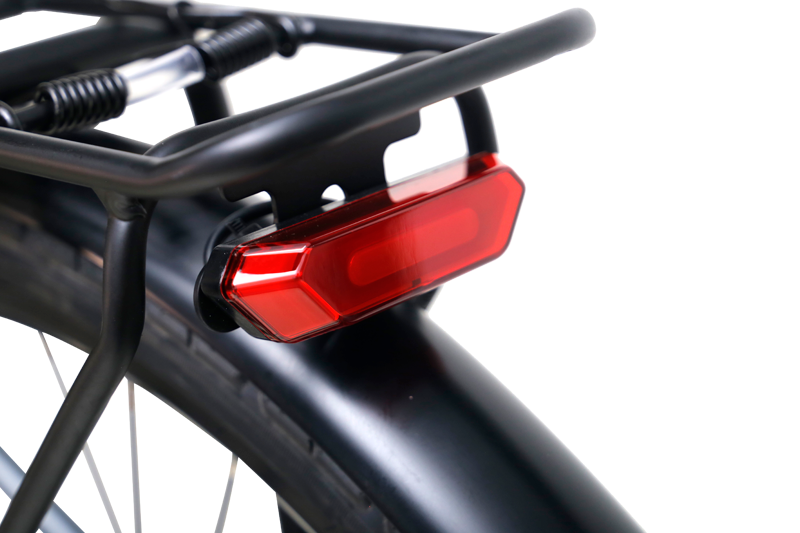

Taillight
Optional
Main compents
Frame
700C Aluminum Alloy 6061
Front fork
RST 100mm hydraulic suspension fork with adjustable damping
Tires
Kenda 700C tires

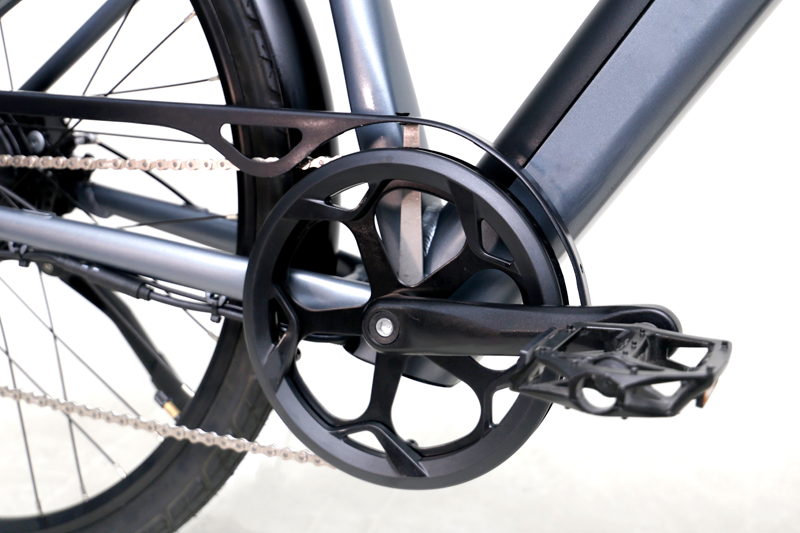

Chainwheel
Prowheel 42T
Chain
KMC Anti-Rust 7 speed

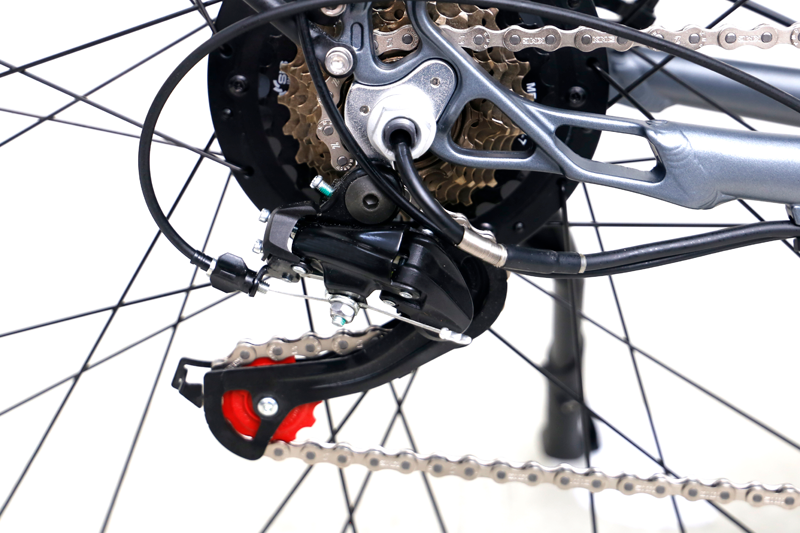

Derailleur system
SHIMANO 7 speed
Brake
ZOOM Mechanical disc brake
Rotors
F:160mm R:160mm
Performance
Max speed
25 Km/h
Max torque
40 N.m
Range
Level 1:  60--70Km/Level 5: 40-45km
Charging time
About 5-6H
Max Load
Recommend no more than 240 lb.
