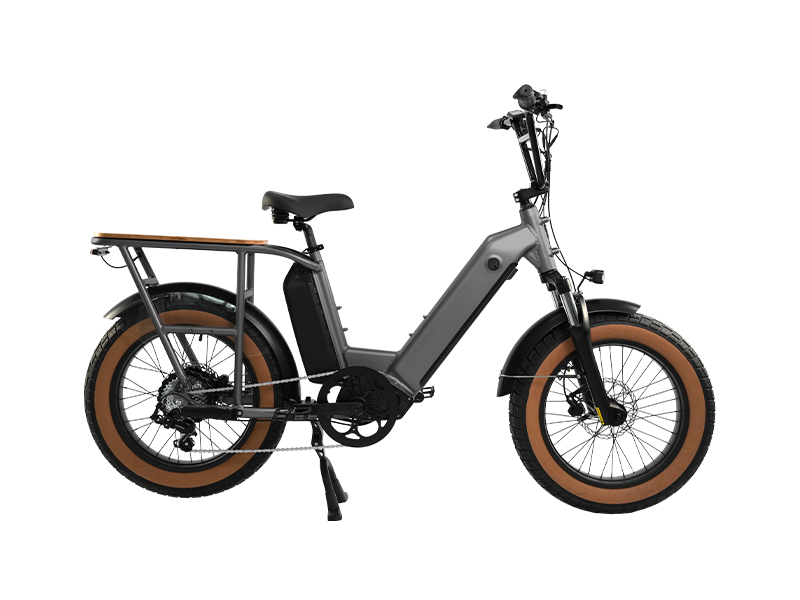

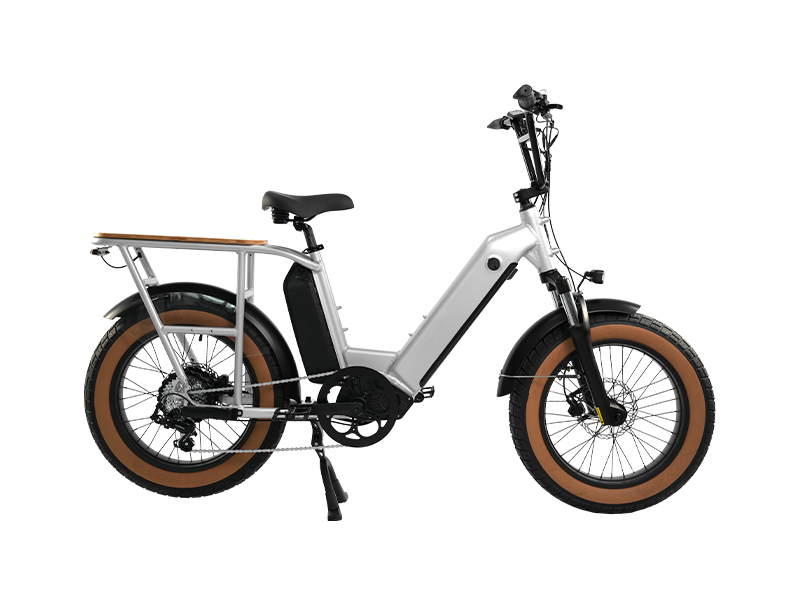

F2-H 48V 500W 750W fat tire rear hub motor electric delivery bike

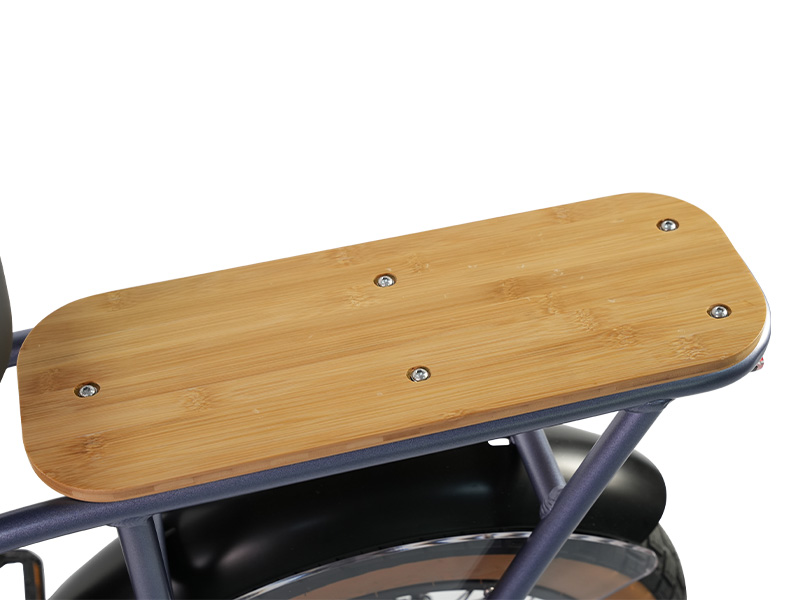

This premium multi-purpose fat tire ebike is equipped with a 750W high-torque motor and a dual-battery module design, enabling effortless long-distance rides on any terrain. Its low-step frame and torque sensor enhance the overall riding experience, while the integrated reinforced rear rack supports accessories like child seats and delivery boxes. Ideal for household use, food delivery, and courier services.

Color: white
Torque
70 Miles
500 W
720 Wh
20+ Mph
7-Speed
300 lb.
Hydraulic

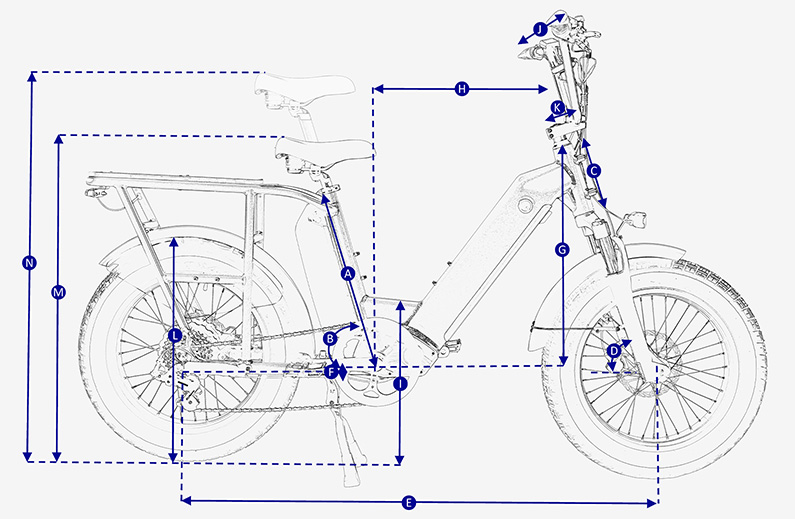

Geometry
SEAT TUBE LENGTH (mm)
457
SEAT TUBE ANGLE
72
HEAD TUBE LENGTH (mm)
200
HEAD TUBE ANGLE
70
WHEELBASE(mm)
1140
BOTTOM BRACKET DROP (mm)
-5
STACK (mm)
580
REACH (mm)
455
STAND OVER HEIGHT (mm)
473
HANDLEBAR WIDTH (mm)
710
STEM LENGTH (mm)
50
WHEEL SIZE
20"*4.0"
MIN SADDLE HEIGHT(mm)
830
MAX SADDLE HEIGHT(mm)
1040
Specs
Electric system

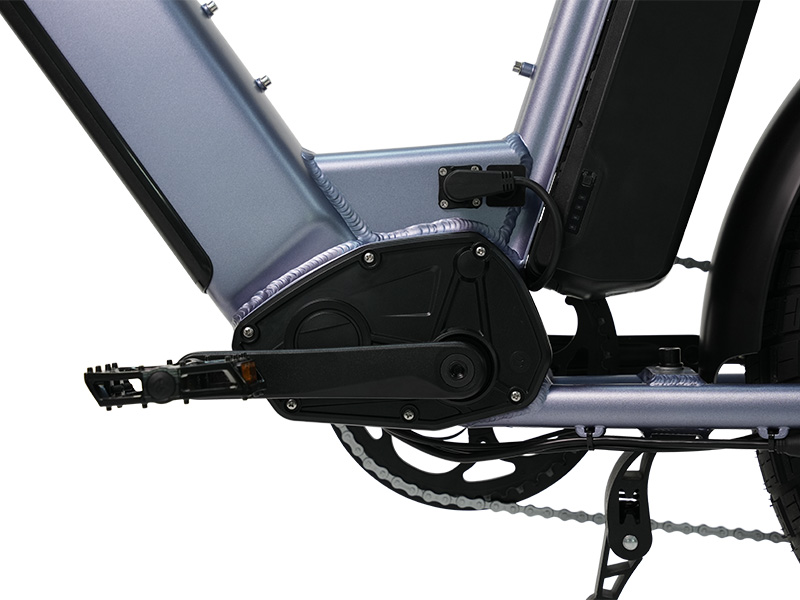

Motor
48V/750W brushless gear motor
Controller
48V/25A

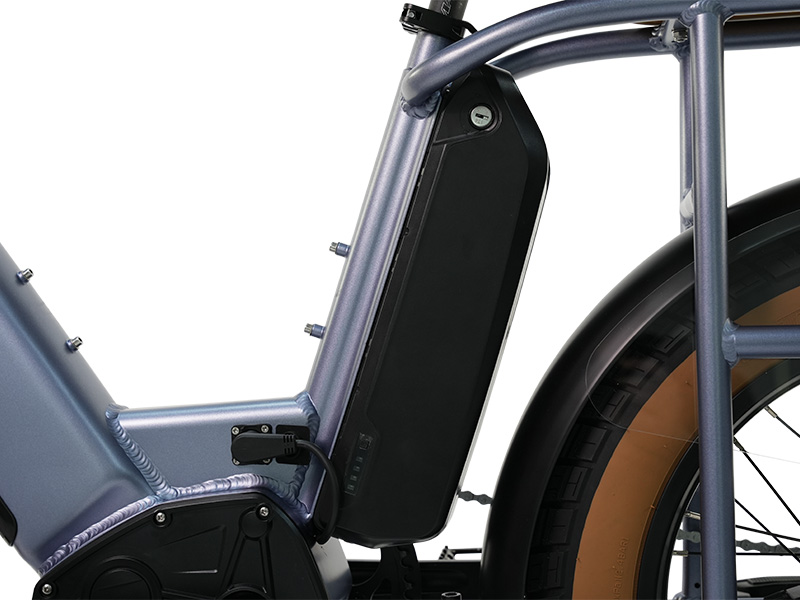

Battery
48V/15Ah  LG/SAMSUNG 21700 720Wh,Optional dual battery module
Charger
54.6V/3A
Throttle
Twist throttle
Sensor
Torque sensor
Display
LCD colorful display
Headlight
48V LED light
Taillight
LED with brake light function
Main compents
Frame
Aluminium Alloy 6061
Front Fork
EXSHO hydraulic suspension lockable with adjustable damping
Tires
INNOVA 20"*4.0"
Chainwheel
PROWHEEL 52T
Chain
KMC Anti-Rust

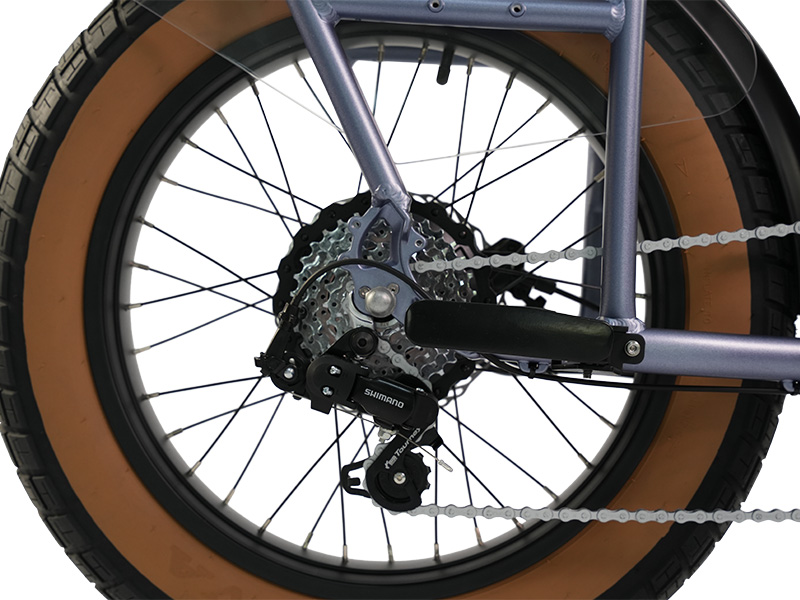

Derailleur system
SHIMANO ALTUS 7 speed
Brake
TEKTRO HD-M275 hydraulic disc brake
Rotors
F:180mm R:180mm
Performance
Max speed
32km/h
Max torque
85N.m
Range
Level 1: 90-95Km Level 5  50-55Km
Charging time
About 5 hours
Max Load
Recommended Less than 130kg
