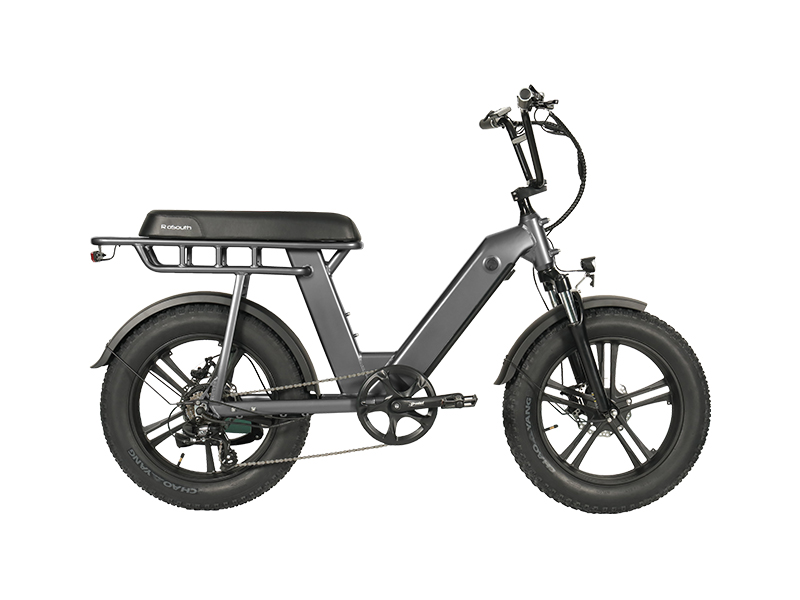

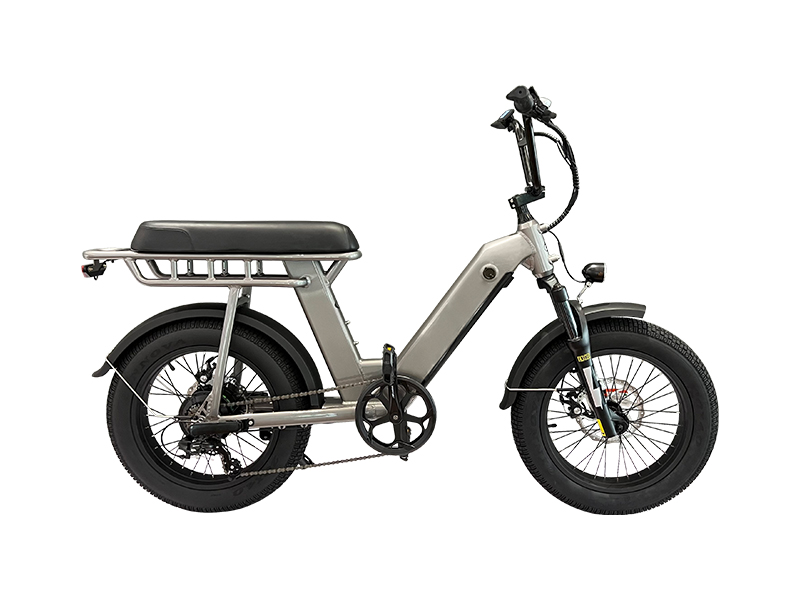

F1-H 48V 750W fat tire rear hub motor electric delivery bike

Discover the unmatched power and comfort of our Fat Tire Electric Bike. Featuring a high-performance 48V 750W rear hub motor and a long-lasting 48V 14.5Ah lithium battery, it easily conquers all terrains. With a durable aluminum frame, premium mechanical components, and an advanced control system, this bike is perfect for urban leisure rides, heavy-duty daily commutes, and light off-road adventures.

Color: white

Overview Geometry Specs

Torque

70 Miles

500 W

720 Wh

20+ Mph

7-Speed

300 lb.

Hydraulic

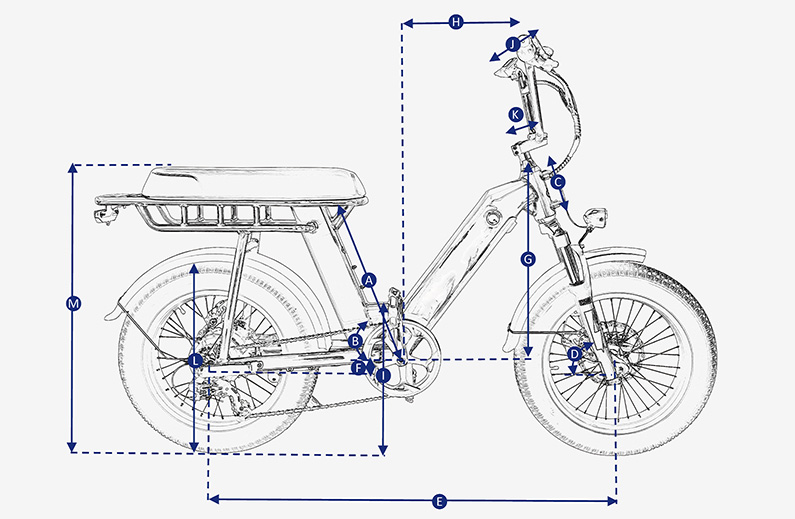

Geometry

SEAT TUBE LENGTH (mm)

485

SEAT TUBE ANGLE

HEAD TUBE LENGTH (mm)

160

HEAD TUBE ANGLE

WHEELBASE(mm)

1150

BOTTOM BRACKET DROP (mm)

-12

STACK (mm)

530

REACH (mm)

365

STAND OVER HEIGHT (mm)

470

HANDLEBAR WIDTH (mm)

710

STEM LENGTH (mm)

WHEEL SIZE

20"*4.0"

MIN SADDLE HEIGHT(mm)

820

MAX SADDLE HEIGHT(mm)

820

Specs

Electric system

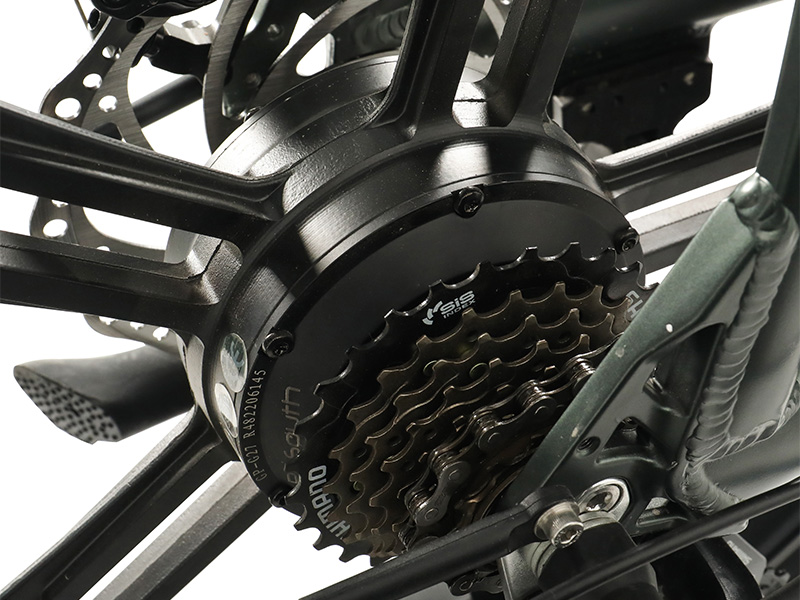

Motor

48V/750W brushless gear motor

Controller

48V/25A

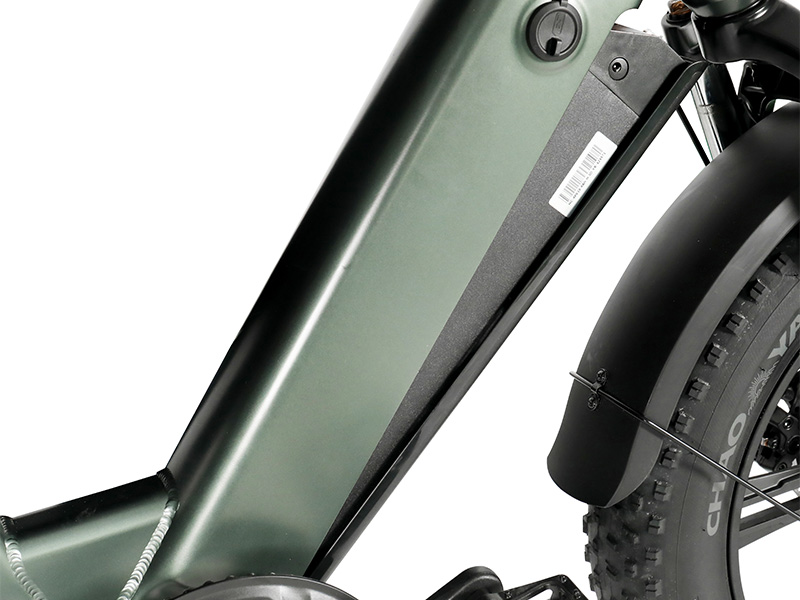

Battery

48V/14.5Ah 18650 696Wh

Charger

54.6V/3A

Throttle

Twist throttle

Sensor

12 magnets speed sensor

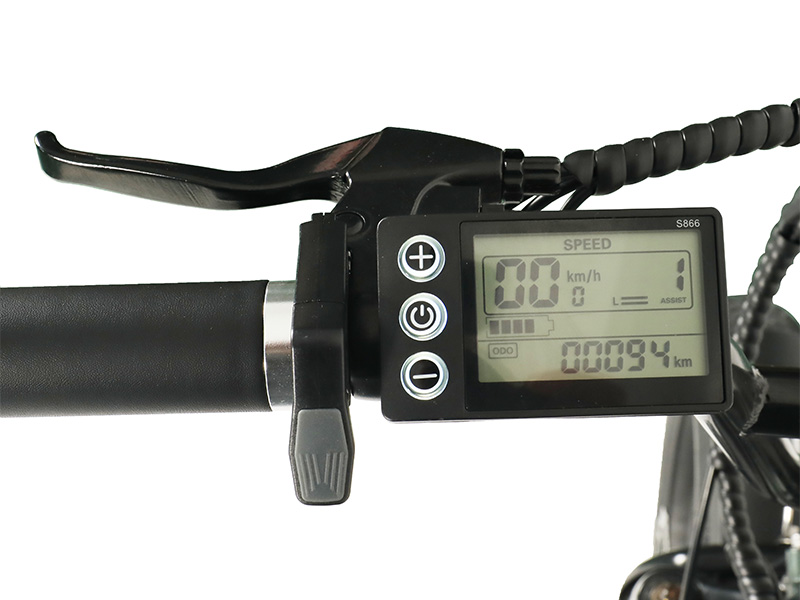

Display

LCD colorful display

Headlight

48V LED light

Taillight

LED with brake light function

Main compents

Frame

Aluminium Alloy 6061

Front Fork

EXSHO hydraulic suspension lockable with adjustable damping

Tires

INNOVA 20"*4.0"

Chainwheel

PROWHEEL 52T

Chain

KMC Anti-Rust

Derailleur system

SHIMANO TOURNEY 7 speed

Brake

TEKTRO HD-M275 hydraulic disc brake

Rotors

F:180mm R:180mm

Performance

Max speed

32km/h

Max torque

85N.m

Range

Level 1:90-95Km ， Level 5 45-50Km

Charging time

About 5 hours

Max Load

Recommended Less than 130kg
