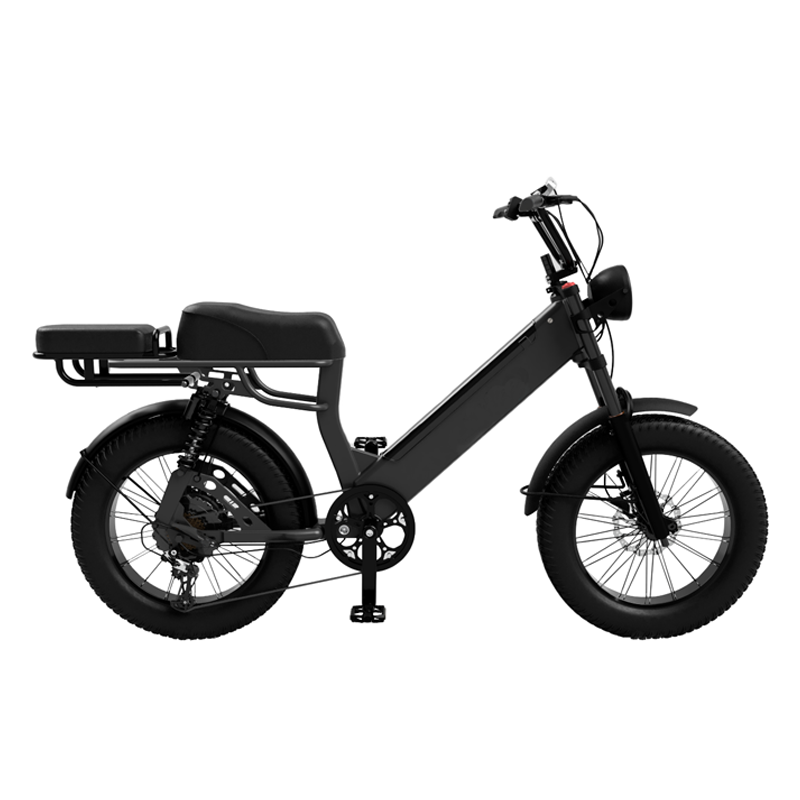

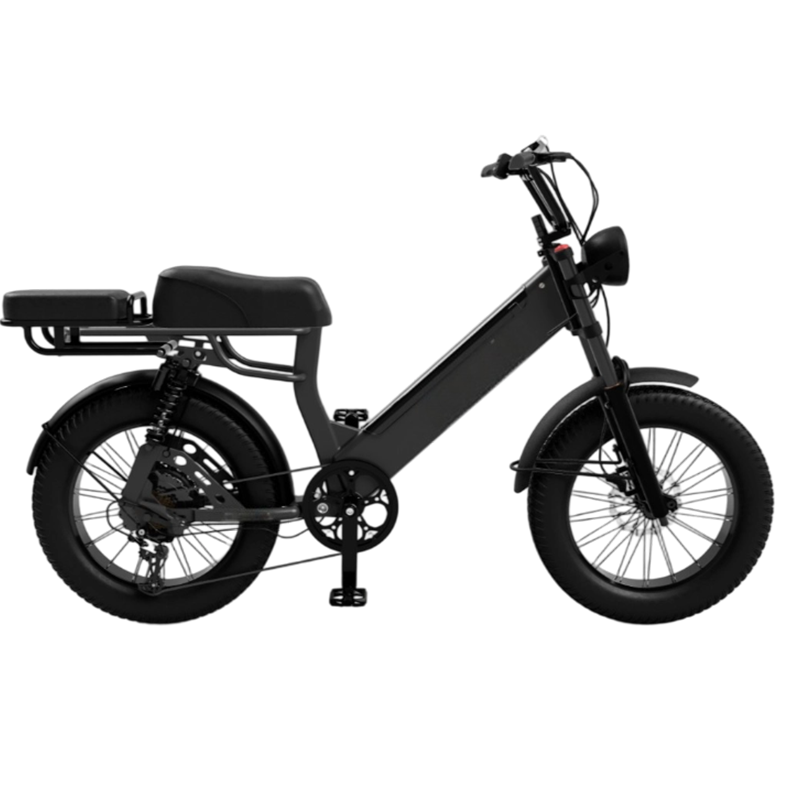

FT1-H 48V 500W bafang hub drive motor fat tire ebike

This full suspension fat tire e-bike combines power and comfort. Featuring a Bafang motor, 960Wh battery, Shimano 7-speed gears, and hydraulic brakes, it's built for both city commutes and off-road trails. The optional rear rack supports a seat or cargo frame, making it as practical as it is adventurous.

Color: white

Overview Geometry Specs

Cadence

80+ Kms

500 W

960 Wh

32 Km/h

7-Speed

240 lb.

Hydraulic

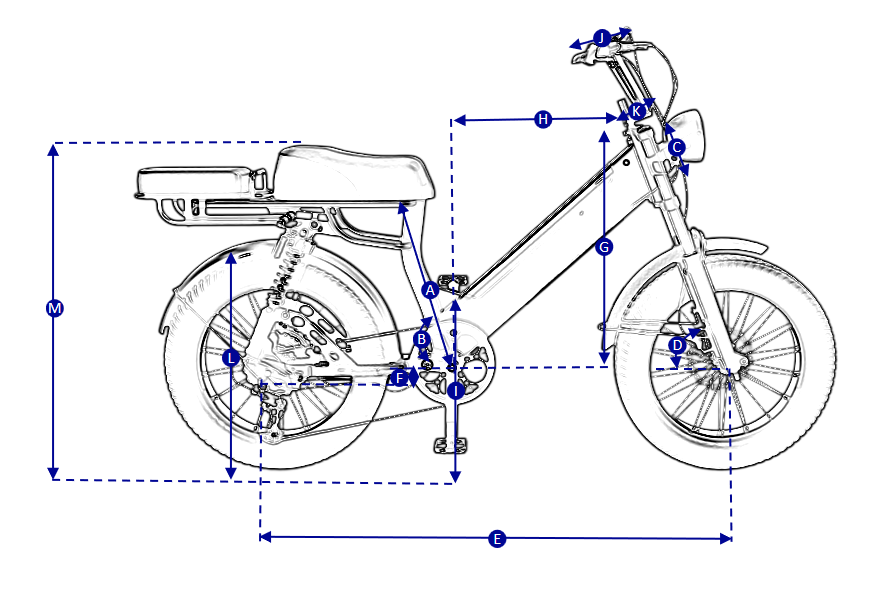

Geometry

A: SEAT TUBE LENGTH (mm)

485

B: SEAT TUBE ANGLE

71°

C: HEAD TUBE LENGTH (mm)

160

D: HEAD TUBE ANGLE

71°

E: WHEELBASE(mm)

1150

F: BOTTOM BRACKET DROP (mm)

-12

G: STACK (mm)

530

H: REACH (mm)

365

I: STAND OVER HEIGHT (mm)

470

J: HANDLEBAR WIDTH (mm)

710

K: STEM LENGTH (mm)

L: WHEEL SIZE

20''*4.0''

M: Saddle Height(mm)

820

Specs

Electric system

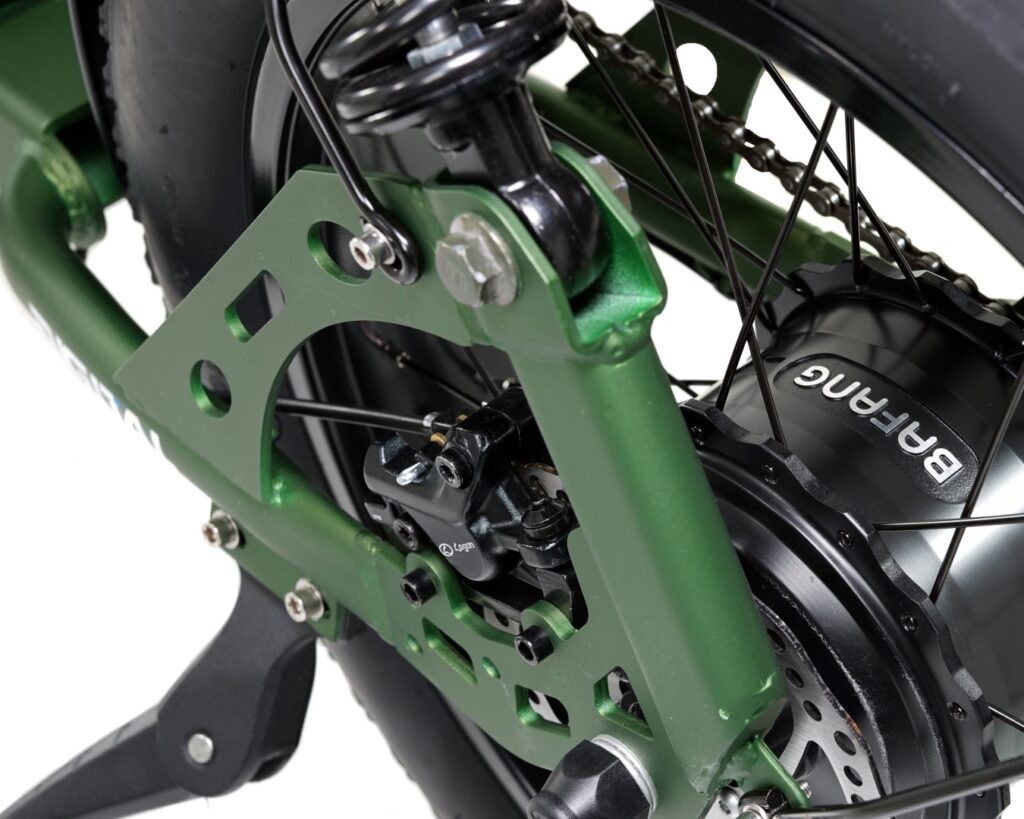

Motor

BAFANG H550 48V/500W Hub Drive motor

Controller

48V 22A sine wave controller

Battery

48V/20Ah LG/SAMSUNG 5000 cells 960Wh

Charger

48V/3A

Throttle

Optional

Sensor

12P Cadence sensor

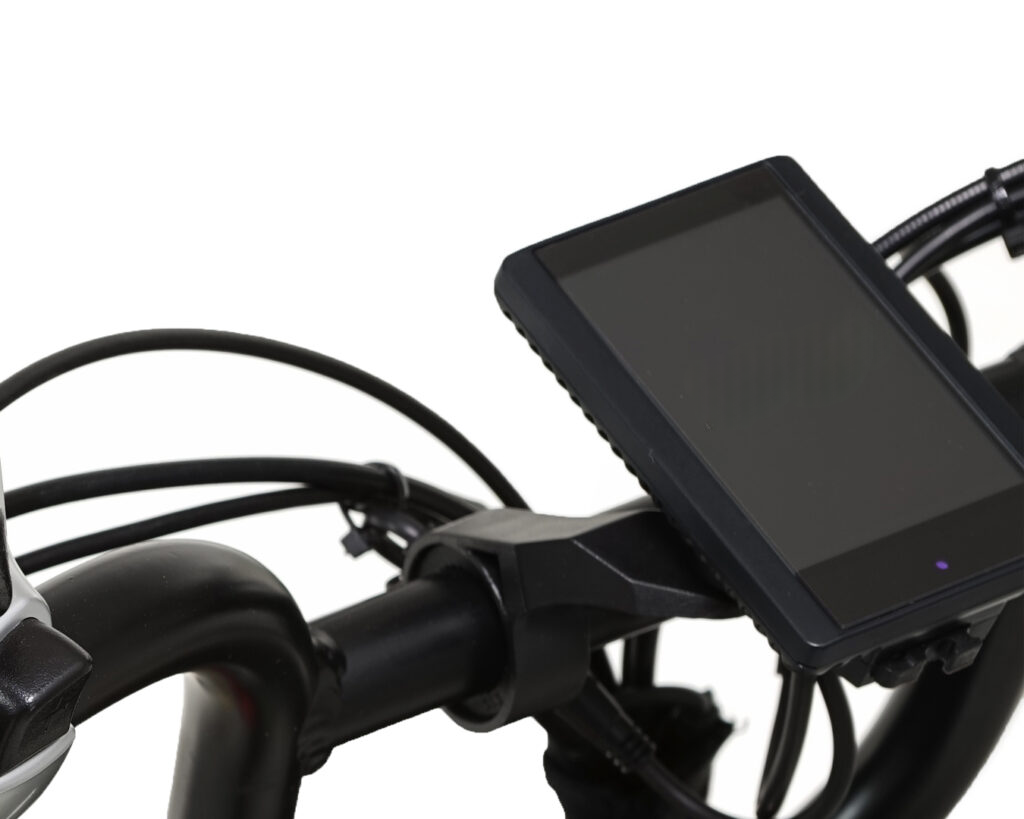

Display

APT 850C TFT display

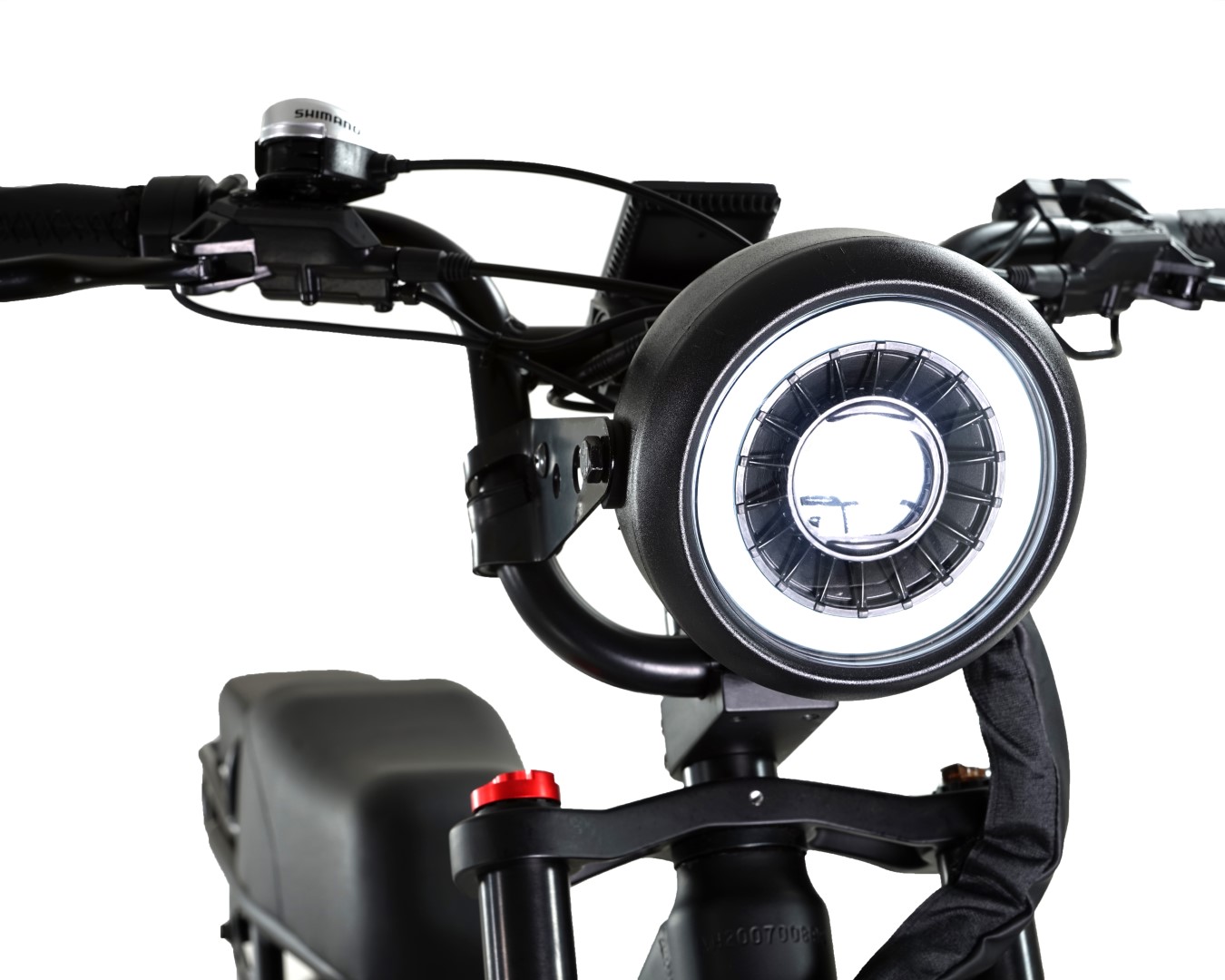

Headlight

48V LED light with Daylight model and horn function

Taillight

Rear tail light with daylight model, turn signal, and brake light functions.

Main compents

Frame

20 inch

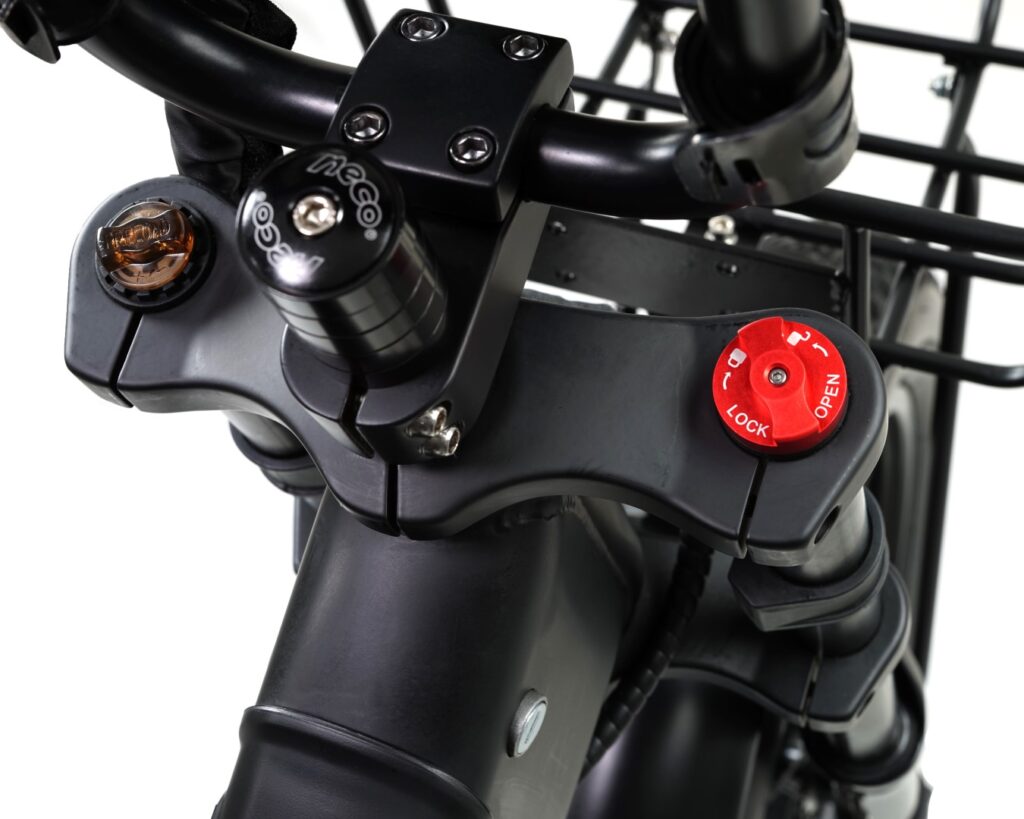

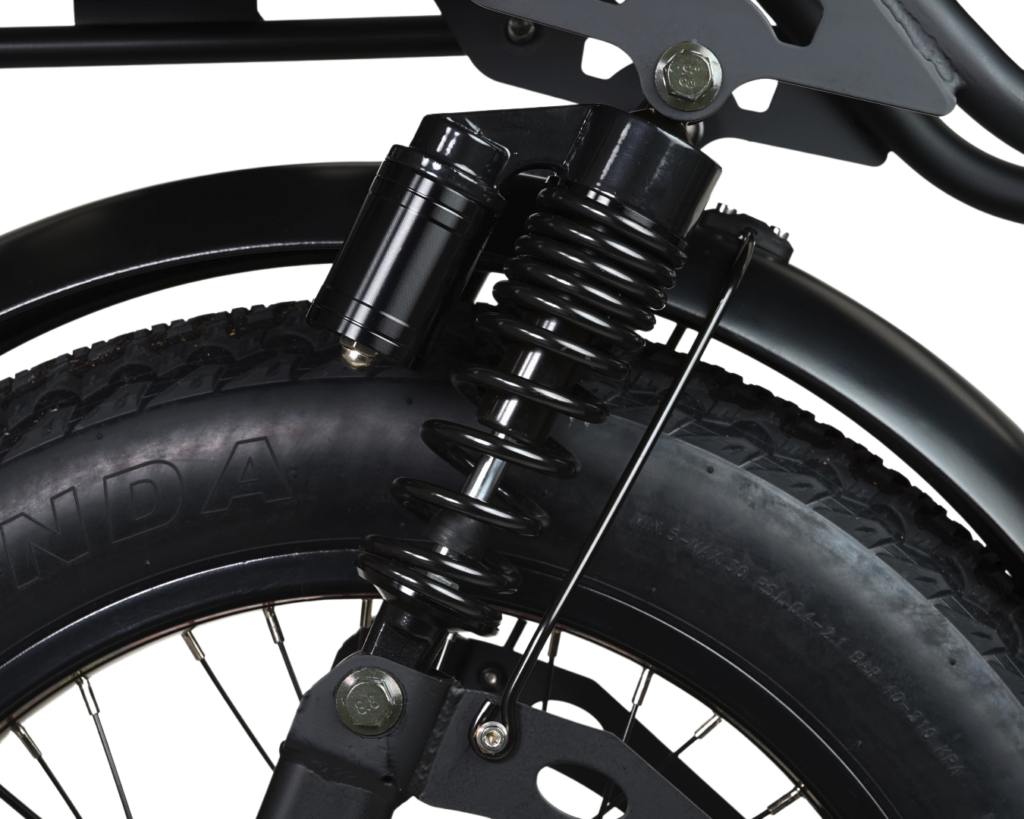

Suspension system

Front and rear full suspension

Tires

Kenda 20"X4.0" tires

Chainwheel

Prowheel 52T

Chain

KMC Anti-Rust 7 speed

Derailleur system

SHIMANO 7 speed

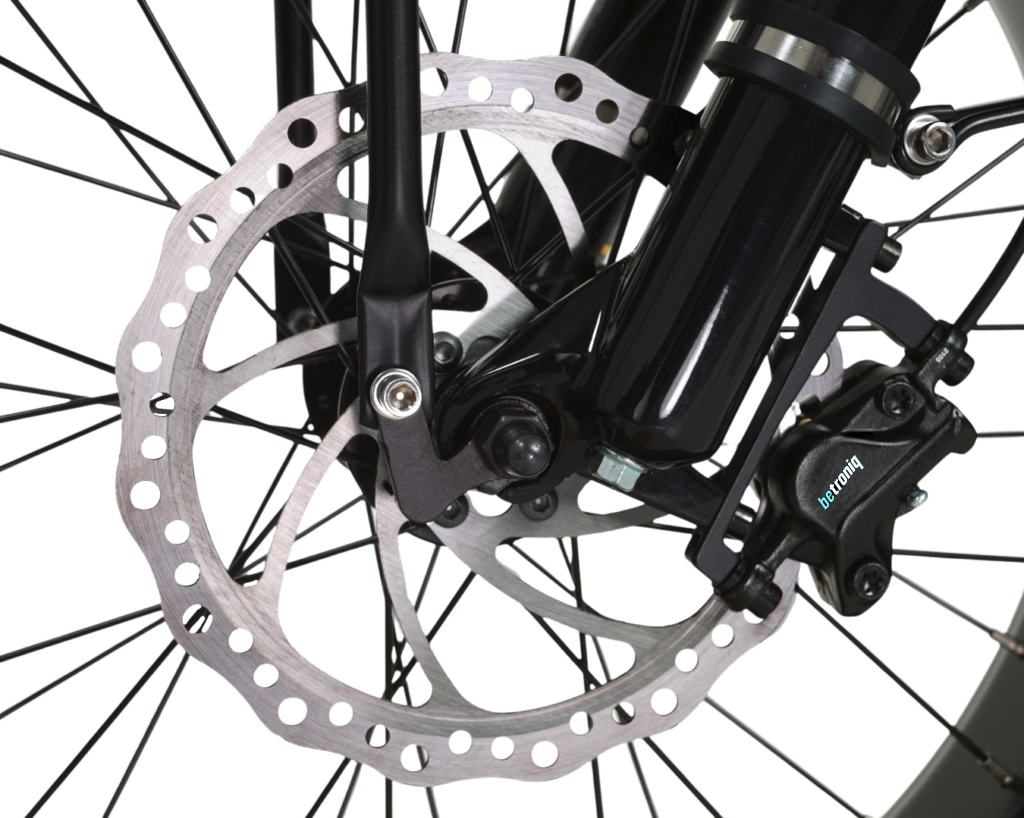

Brake

Hydraulic disc brake

Rotors

F:180mm R:180mm

Performance

Max speed

32 Km/h

Max torque

65 N.m

Range

Level 1: 130--140Km/Level 5: 70-80km

Charging time

About 7H

Max Load

Recommend no more than 240 lb.
