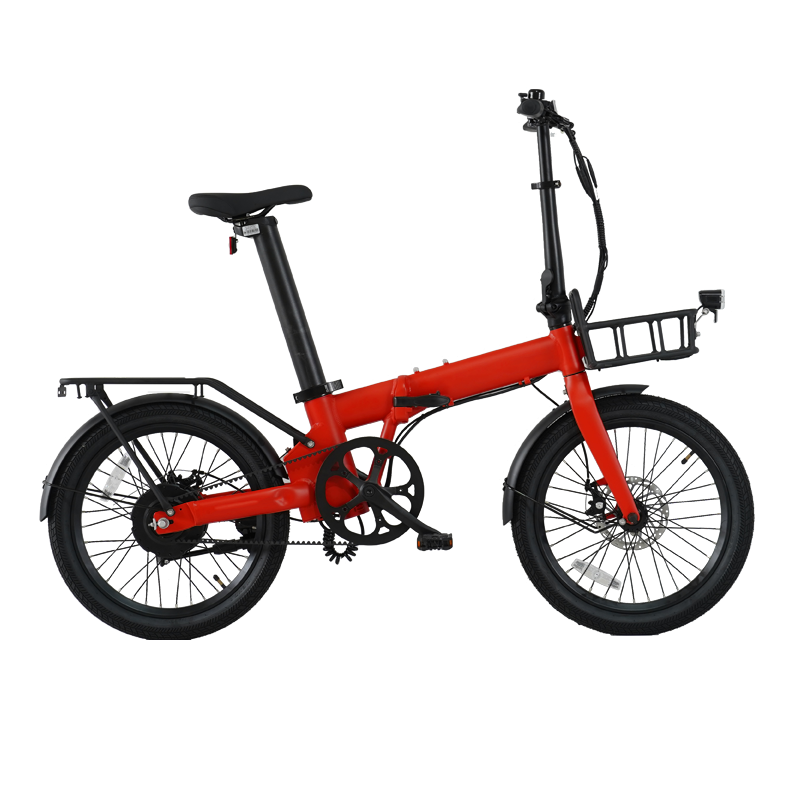

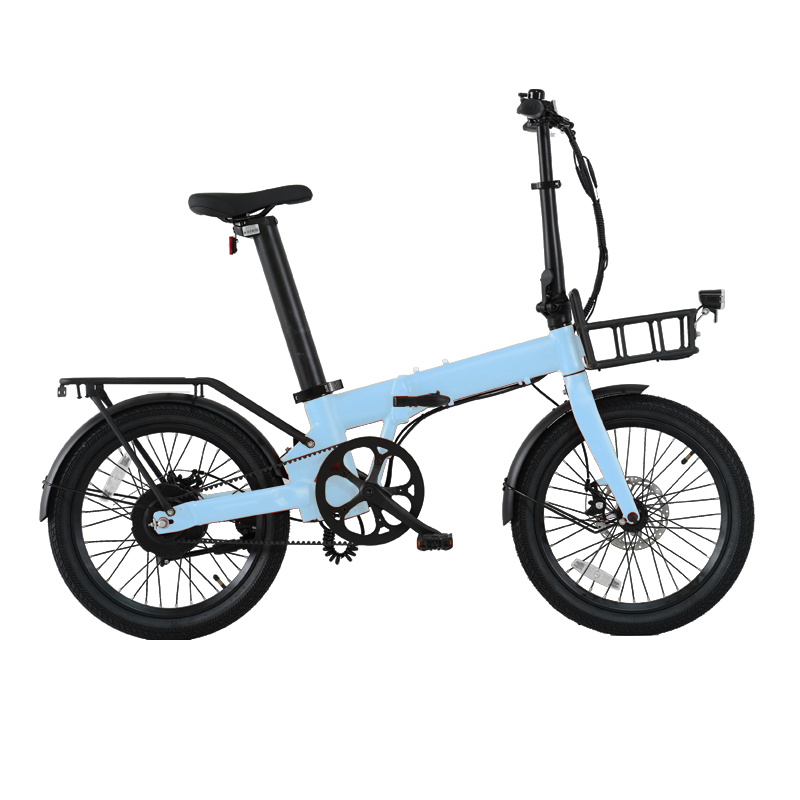

FB1-H 36V 250W bafang hub drive motor folding ebike

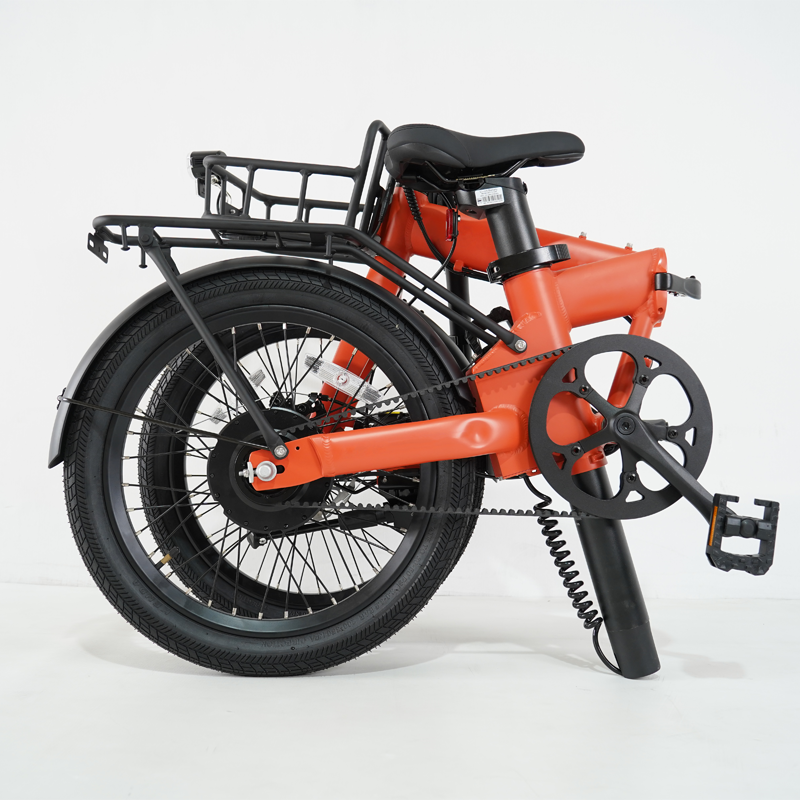

Designed for agile city life, this e-bike folds effortlessly for portability. Powered by a 36V 250W Bafang rear hub motor, it delivers smooth electric assistance. The maintenance-free Dayco belt drive ensures quiet, reliable rides without chain maintenance. An integrated seat tube battery saves space while maintaining sleek aesthetics. Perfect for daily commutes or urban exploration, combining practical design with eco-smart travel.

Color: white

Overview Geometry Specs

Cadence sensor

60+ Kms

250 W

378 Wh

25 Km/h

7-Speed

220 lb.

Mechanical

Geometry

A: SEAT TUBE LENGTH (mm)

242

B: SEAT TUBE ANGLE

73°

C: TOP TUBE LENGTH (mm)

566.8

D: HEAD TUBE LENGTH (mm)

100

E: HEAD TUBE ANGLE

74°

F: FORK RAKE

6°

G: TRAlL (mm)

H: WHEELBASE(mm)

997

I: CHAIN STAY LENGTH (mm)

240

J: BOTTOM BRACKET DROP (mm)

-57.2

K: STACK (mm)

343

L: REACH (mm)

410

M: STAND OVER HEIGHT (mm)

510

N: HANDLEBAR WIDTH (mm)

590

O: STEM LENGTH (mm)

380-500

P: WHEEL SIZE

20''

Q: Min Saddle Height(mm)

510

R: Max Saddle Height(mm)

760

Specs

Electric system

Motor

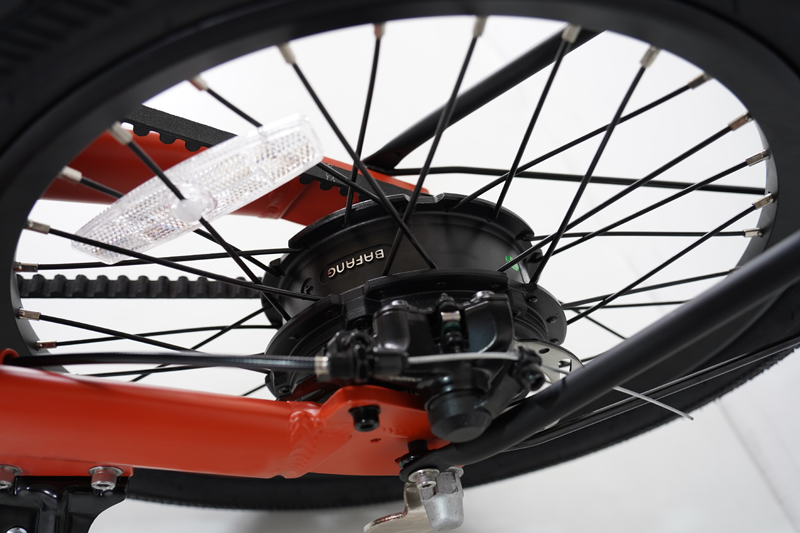

BAFANG H305 36V/250W Hub motor

Controller

36V 15A Sine Wave controller

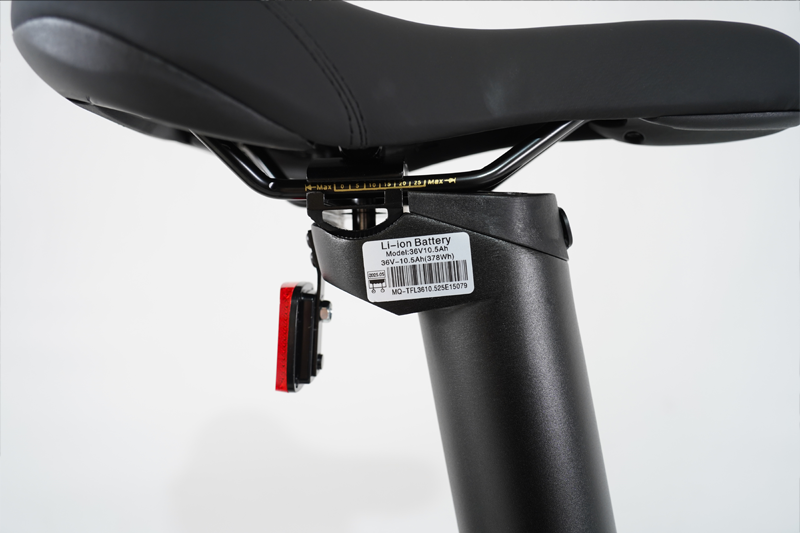

Battery

36V/10.5Ah LG/SAMSUNG 3500 cells 378Wh

Charger

36V/2A

Throttle

Optional

Sensor

12P Cadence sensor

Display

LCD display

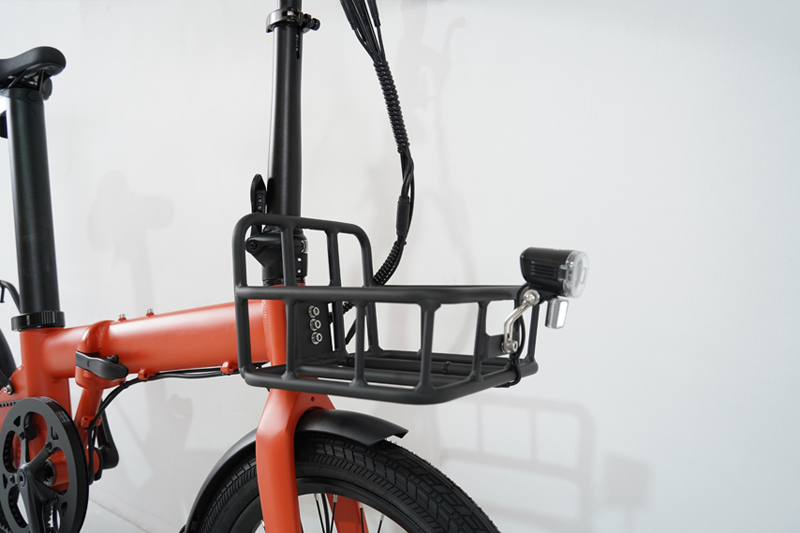

Headlight

36V LED light

Taillight

Optional

Main compents

Frame

20 inch Aluminum Alloy 6061 foldable

Front fork

Aluminum alloy

Tires

Kenda 20"X2.3" tires

Chainwheel

64T

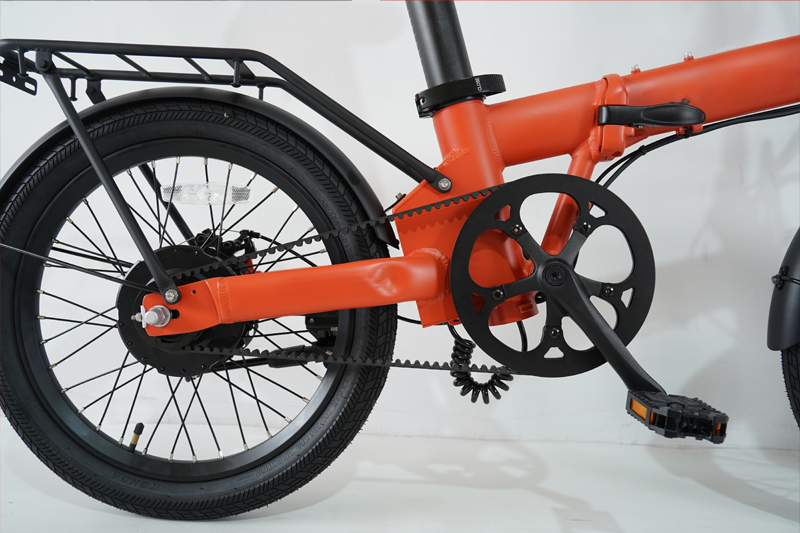

Belt Chain

DAYCO 1364mm-11M-12mm Belt

Derailleur system

22T Single gear

Brake

Tektro Mechanical disc brake

Rotors

F:160mm R:160mm

Performance

Max speed

25 Km/h

Max torque

50N.m

Range

Level 1: 70--80Km/Level 5: 30-40km

Charging time

About 5H

Max Load

Recommend no more than 220 lb.
