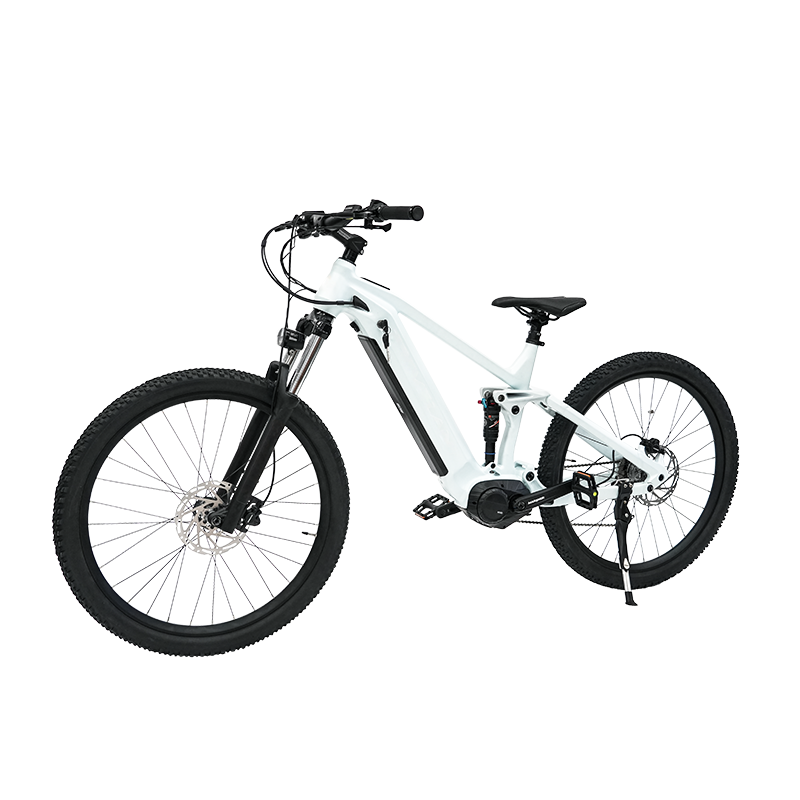

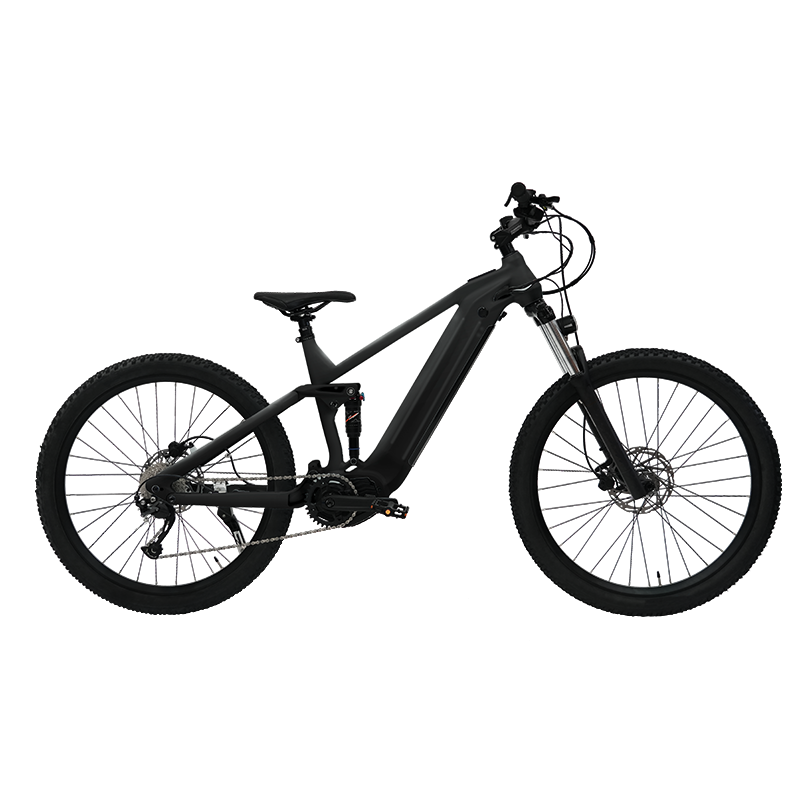

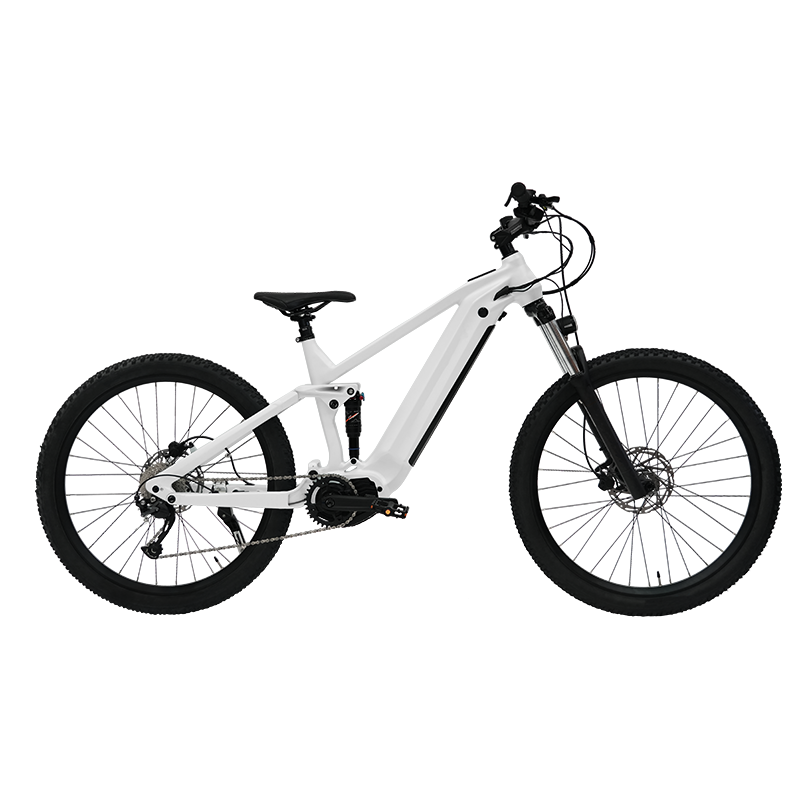

MTB3-M 48V 750W full suspension bafang mid drive motor ebike

Engineered for demanding off-road performance. Features a lightweight aluminum frame with 120mm RST/DNM air suspension and KSP860-I air seatpost. The BAFANG mid-drive motor delivers exceptional climbing power, supported by a UL-certified battery.Ideal for technical trail riding, backcountry expeditions, and challenging all-mountain terrain for all-conditions capability.

Color: white

Overview Geometry Specs

Torque

80+ Kms

750 W

720 Wh

45 Km/h

9-Speed

300 lb.

Hydraulic

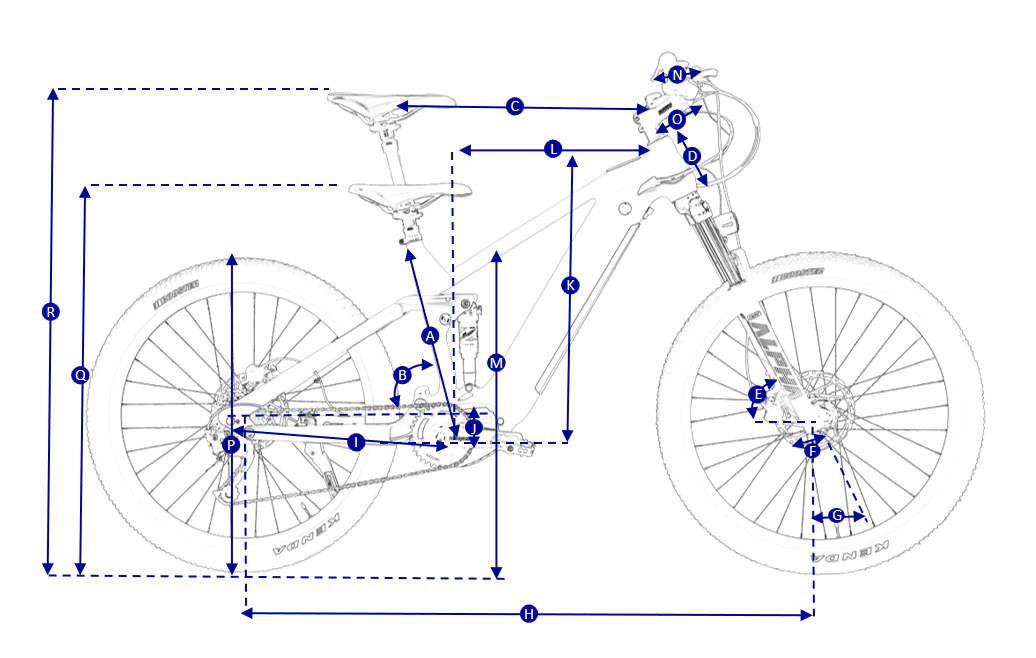

Geometry

A: SEAT TUBE LENGTH (mm)

430

B: SEAT TUBE ANGLE

72°

C: TOP TUBE LENGTH (mm)

570

D: HEAD TUBE LENGTH (mm)

130

E: HEAD TUBE ANGLE

65°

F: FORK RAKE (mm)

25°

G: TRAlL (mm)

H: WHEELBASE(mm)

1275

I: CHAIN STAY LENGTH (mm)

415

J: BOTTOM BRACKET DROP (mm)

K: STACK (mm)

620

L: REACH (mm)

430

M: STAND OVER HEIGHT (mm)

710

N: HANDLEBAR WIDTH (mm)

780

O: STEM LENGTH (mm)

P: WHEEL SIZE

27.5''

Q: Min Saddle Height(mm)

860

R: Max Saddle Height(mm)

970

Specs

Electric system

Motor

BAFANG M560 48V/750W Mid-Drive motor

Controller

BAFANG built-in controller

Battery

48V/15Ah LG/SAMSUNG 5000 cells 720Wh

Charger

48V/3A

Throttle

Optional

Sensor

BAFANG built-in torque sensor

Display

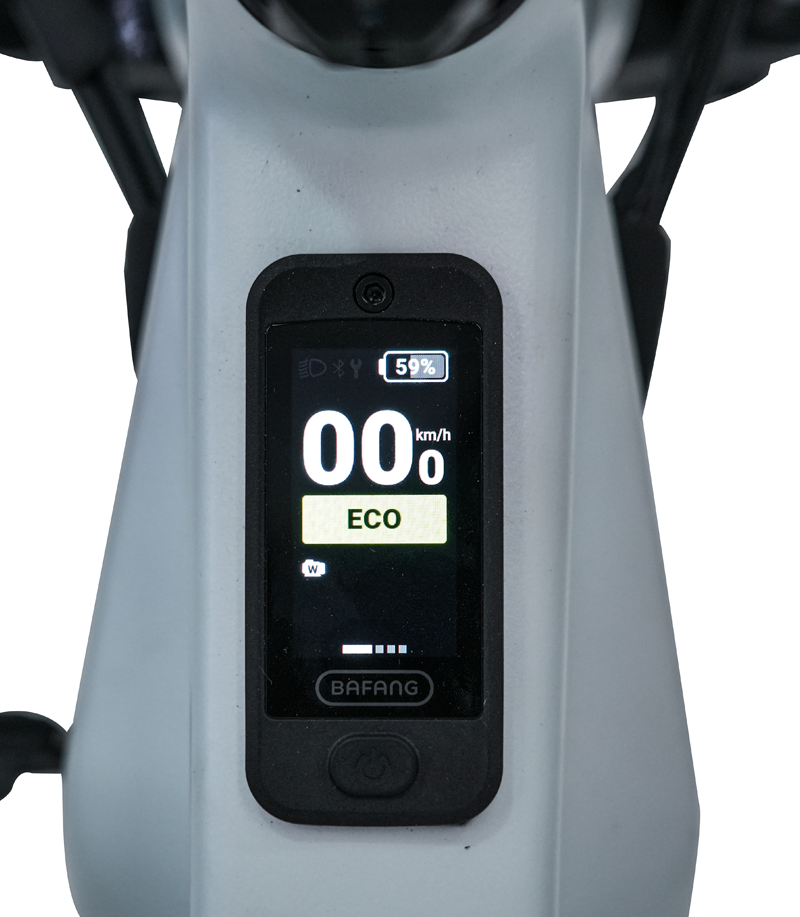

BAFANG DP C030 color TFT display (with Bluetooth) integrated inside the frame

Headlight

48V LED light

Taillight

Main compents

Frame

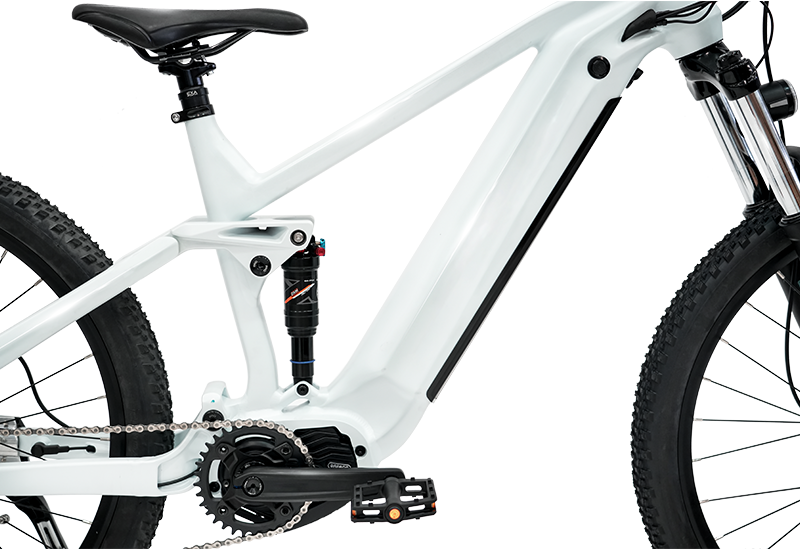

Carbon fiber Four-Bar Linkage Frame with rear air shock DNM AO-38RC 190mm/50mm

Front fork

RST 120mm hydraulic suspension fork with adjustable damping

Rear suspension

DNM AO-38RC 190 x 50 mm

Seatpost

KSP860-I Internal Air Pressure Drop Post, 125 mm travel

Tires

Kenda 27.5"X2.3" tires

Chainwheel

BAFANG 44T

Chain

KMC Anti-Rust 9 speed

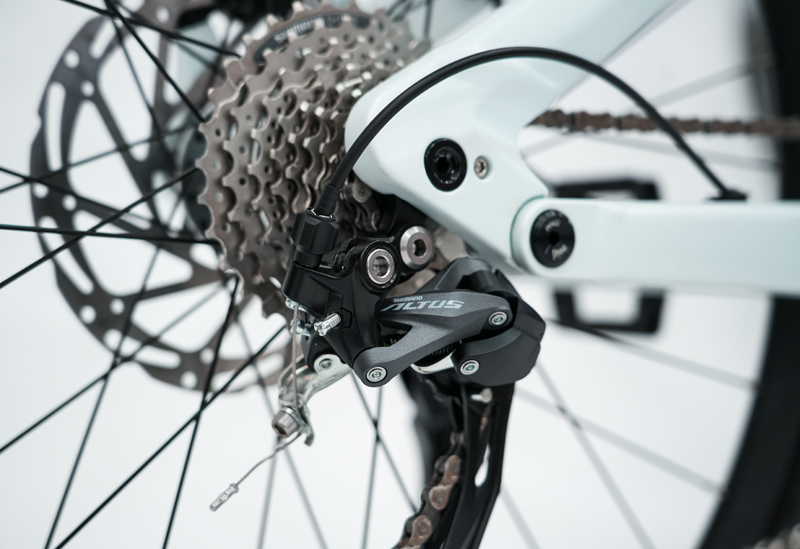

Derailleur system

SHIMANO 9 speed

Brake

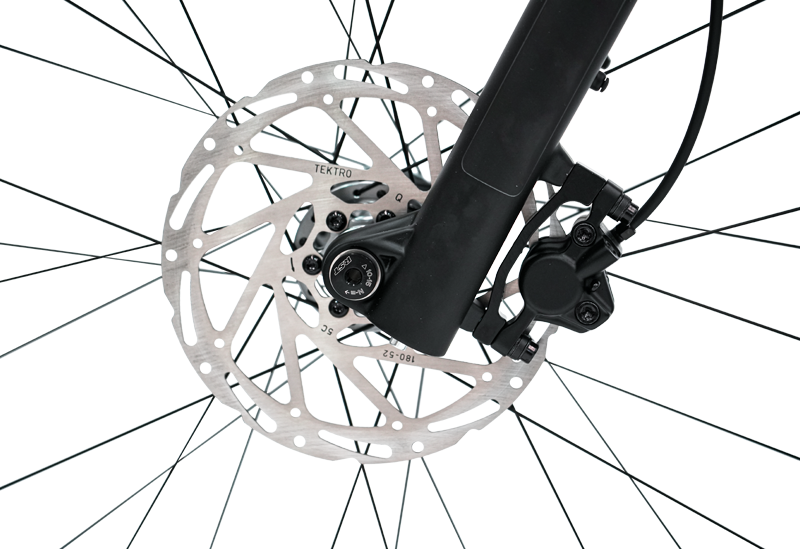

Tektro E350 hydraulic disc brake

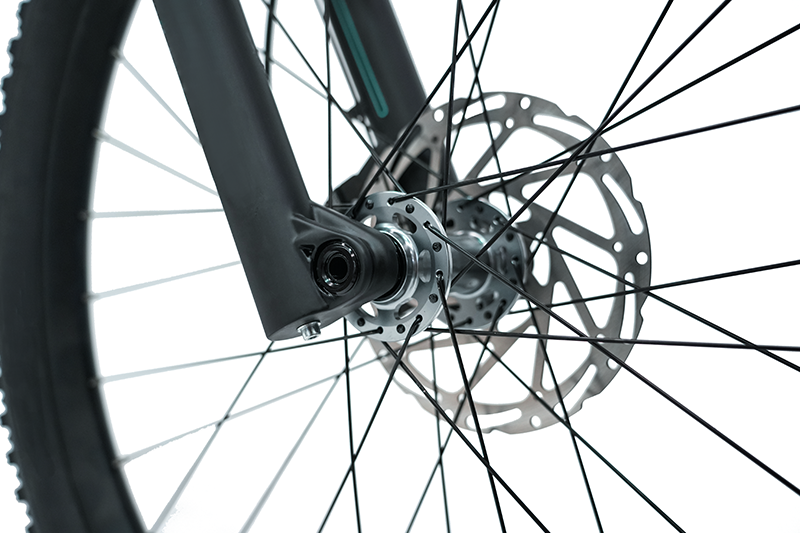

Rotors

F:180mm R:180mm

Performance

Max speed

45 Km/h

Max torque

150N.m

Range

Level 1: 90--100Km/Level 5: 60-80km

Charging time

About 5H

Max Load

Recommend no more than 300 lb.
