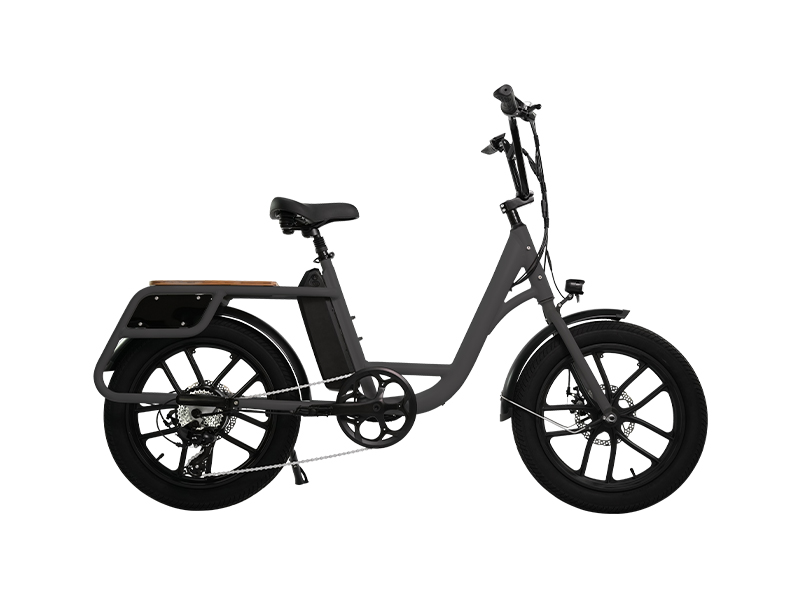

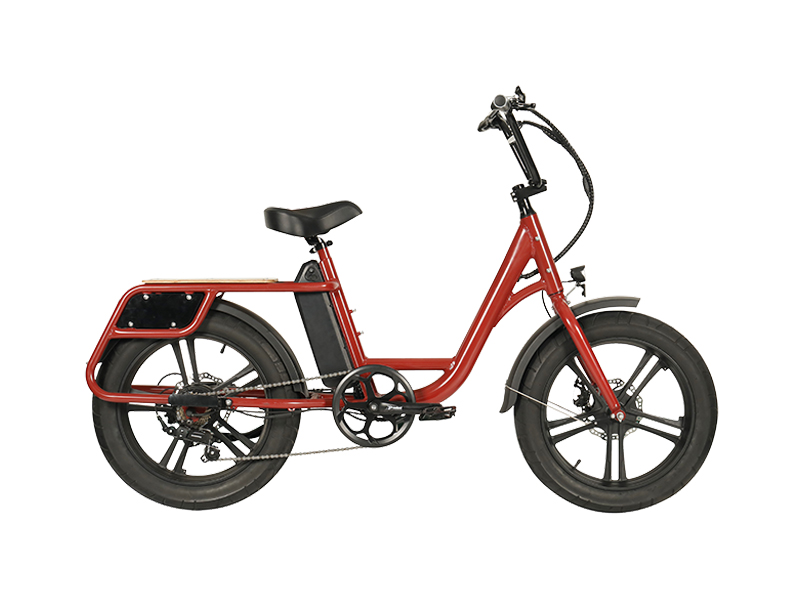

CG1-H 48V 500W rear hub motor fat tire electric cargo bike

This sturdy and durable cargo bike is made from reinforced aluminum alloy, ensuring long-lasting performance. Its low-step frame design and integrated rear rack allow for the addition of accessories such as rear cushions and delivery boxes, making it an ideal choice for household use, food delivery, and courier services.

Color: white

Overview Geometry Specs

Torque

70 Miles

500 W

720 Wh

20+ Mph

7-Speed

300 lb.

Hydraulic

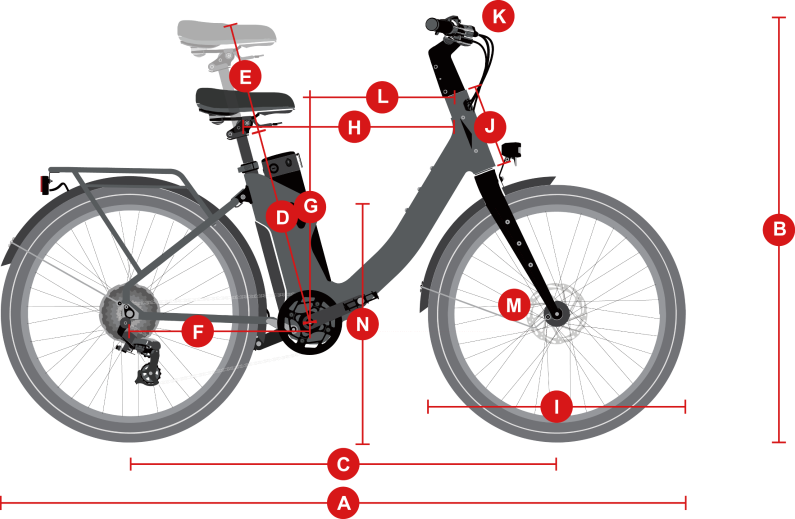

Geometry

Recommended Height: 5'1"~6

A- total length

70.6

B - handlebar height

45.3

C-wheelbase

43.8

D-minimum seat height

SEAT TUBE LENGTH (mm)

457

SEAT TUBE ANGLE

HEAD TUBE LENGTH (mm)

220

HEAD TUBE ANGLE

WHEELBASE(mm)

1140

BOTTOM BRACKET DROP (mm)

-15

STACK (mm)

510

REACH (mm)

420

STAND OVER HEIGHT (mm)

424

HANDLEBAR WIDTH (mm)

710

STEM LENGTH (mm)

WHEEL SIZE

20"*3.0"

MIN SADDLE HEIGHT(mm)

880

MAX SADDLE HEIGHT(mm)

990

Specs

Electric system

Motor

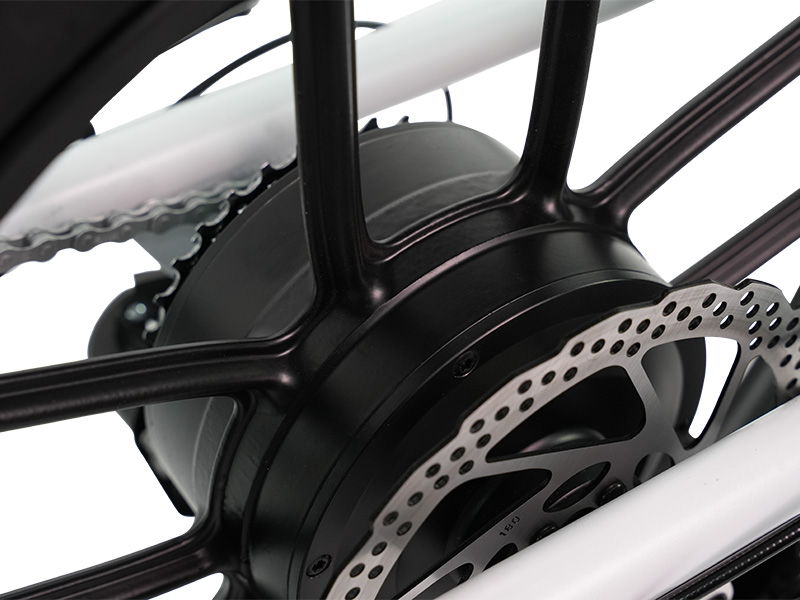

48V/500W brushless gear motor

Controller

48V/20A

Battery

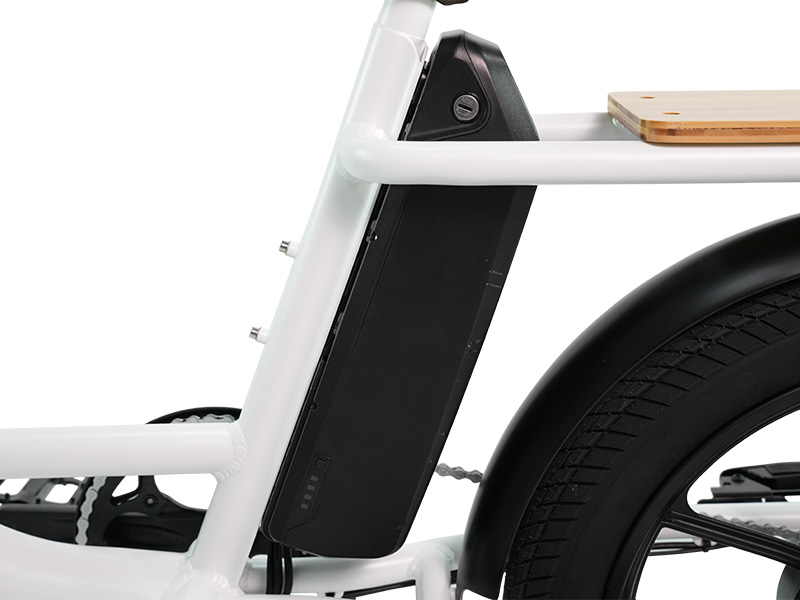

48V/14.5Ah 18650 624Wh

Charger

54.6V/3A

Throttle

Twist throttle

Sensor

12 magnets speed sensor

Display

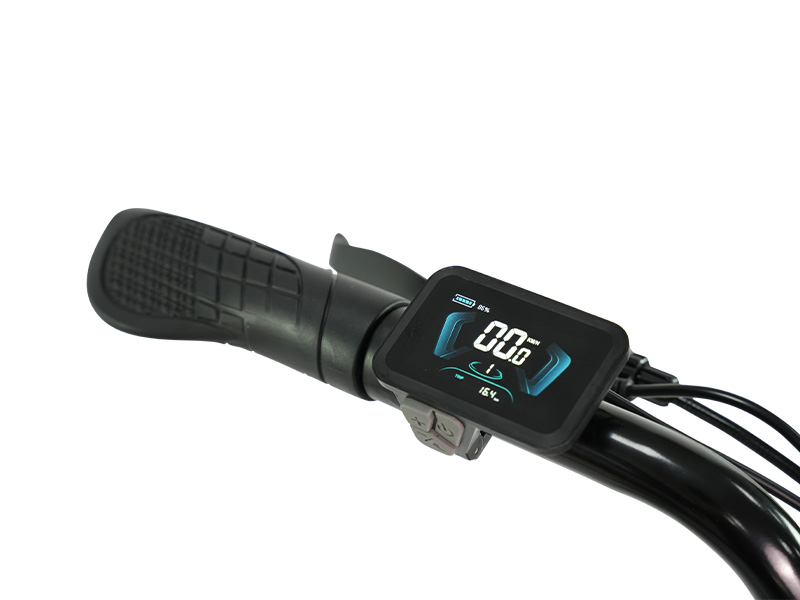

LCD colorful display

Headlight

48V LED light

Taillight

LED with brake light function

Main compents

Frame

Aluminium Alloy 6061

Front fork

Rigid Steel fork

Tires

INNOVA 20"*3.0" with reflector

Chainwheel

PROWHEEL 52T

Chain

KMC Anti-Rust

Derailleur system

SHIMANO TOURNEY 7 speed

Brake

Mechanical disc brake

Rotors

F:180mm R:180mm

Performance

Max speed

32km/h

Max torque

65N.m

Range

Level 1: 100-110Km Level 5：50-55Km

Charging time

About 6H

Max Load

Less than 130kg recommended
