FT2-H 52V 1000W torque sensor hub motor fat tire electric bike
  • 250W step-through city electric bike

  • Stylish and lightweight

  • Hydraulic brakes and a 7-speed Shimano drivetrain, stable and reliable


Color: white
Torque
50+ Kms
1000 W
546 Wh
42 Km/h
7-Speed
240 lb.
Hydraulic

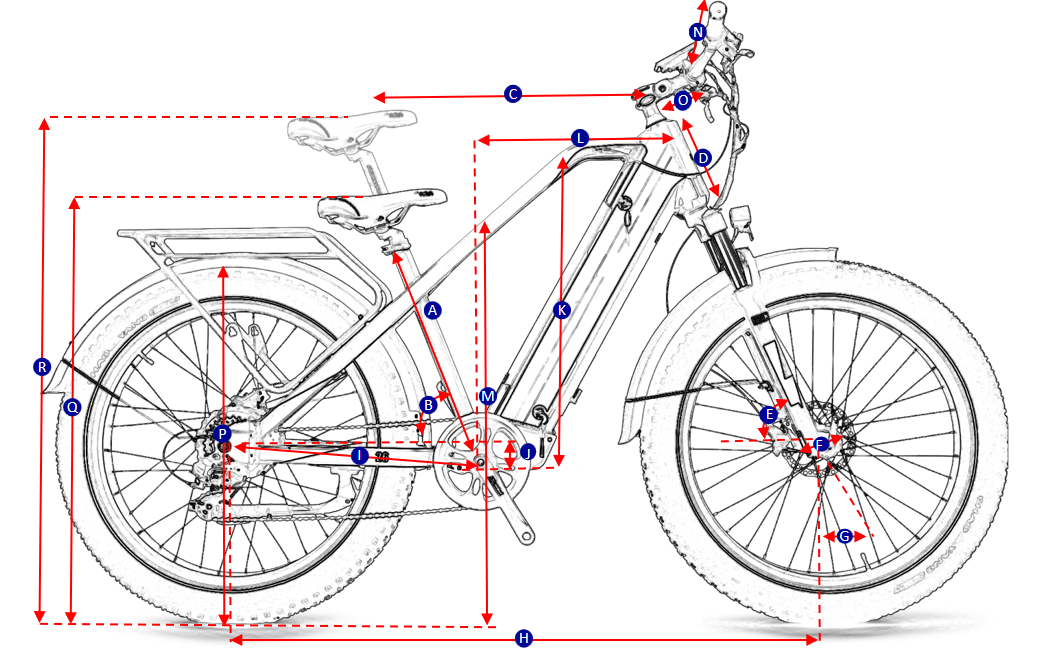

Geometry



A: SEAT TUBE LENGTH (mm)
480
B: SEAT TUBE ANGLE
67.2°
C: TOP TUBE LENGTH (mm)
540
D: HEAD TUBE LENGTH (mm)
190
E: HEAD TUBE ANGLE
68.5°
F: FORK RAKE (mm)
43
G: TRAlL (mm)
93.5
H: WHEELBASE(mm)
1180
I: CHAIN STAY LENGTH (mm)
510
J: BOTTOM BRACKET DROP (mm)
40
K: STACK (mm)
680
L: REACH (mm)
380
M: STAND OVER HEIGHT (mm)
795
N: HANDLEBAR WIDTH (mm)
680
O: STEM LENGTH (mm)
100
P: WHEEL SIZE
26''
Q: Min Saddle Height(mm)
780
R: Max Saddle Height(mm)
1030
Specs
Electric system
Motor
52V/1000W Hub Drive motor
Controller
52V 30A sine wave controller
Battery
52V/10.5Ah LG/SAMSUNG 3500 cells 546Wh
Charger
52V/3A
Throttle
Thumb throttle
Sensor
Torque sensor
Display
LCD display (with Bluetooth) integrated inside the frame
Headlight
LED Light
Taillight
LED Light
Main compents
Frame
26 inch Aluminum Alloy 6061
Front fork
Aluminum Suspension Front Fork
Tires
26*4 inch tires
Chainwheel
44T
Chain
KMC Anti-Rust 7 speed
Derailleur system
SHIMANO 7 speed
Brake
Hydraulic disc brake
Rotors
F:160mm R:160mm
Performance
Max speed
42 Km/h
Max torque
130 N.m
Range
Level 1:  45--50Km/Level 5: 30-35km
Charging time
About 3.5H
Max Load
Recommend no more than 240 lb.


Description

Conquer any terrain with the FT2-H, a high-performance fat tire electric bike built for those who refuse to compromise on power or distance. Engineered with a robust 1000W motor and an innovative dual battery system, this off-road electric bicycle is your ultimate partner for mountain trails, snowy paths, and sandy beaches.


Unmatched Power & Performance:


        ● 1000W High-Torque Motor

         The heart of the FT2-H is its 52V 1000W rear hub motor, delivering massive torque for steep climbs and rapid acceleration. Whether you are navigating mud or soft sand, this high-power fat tire e-bike ensures a

         smooth, effortless ride.


        ● Dual Battery Technology

         Featuring two high-capacity 52V 10.5AH batteries (total 21Ah), the FT2-H sets a new standard for long-range fat tire ebikes. Switch between batteries or run them in parallel to reach destinations that were once out of

         range.


        ● Precision Handling

        Equipped with HD-E500 hydraulic disc brakes, the FT2-H provides professional-grade stopping power even in wet or icy conditions, making it a safe and reliable all-terrain e-bike.


Built for the Elements:


        ● 26-Inch Fat Tires

         The oversized 4.0 fat tires act as a natural shock absorber, offering superior traction on unstable surfaces. It’s the perfect snow and sand e-bike for year-round exploration.


        ● Rugged Aluminum Frame

        The aircraft-grade aluminum alloy frame is lightweight yet durable, specifically designed as a heavy-duty electric bike capable of supporting adventurous riders and extra gear.


        ● Smart Riding Interface

         The M4 LCD display provides real-time data on speed, battery life, and mileage, ensuring you stay in control of your eco-friendly adventure vehicle at all times.


Why Choose the FT2-H?


From weekend trail-blazing to professional outdoor utility use, the FT2-H is more than just a bike—it’s a fat tire e-moto hybrid that redefines what’s possible on two wheels. As one of the best fat tire ebikes of 2026, it combines aggressive styling with industry-leading specs.


  • Conquer any terrain with the FT2-H, a high-performance fat tire electric bike built for those who refuse to compromise on power or distance. Engineered with a robust 1000W motor and an innovative dual battery system, this off-road electric bicycle is your ultimate partner for mountain trails, snowy paths, and sandy beaches.


    Unmatched Power & Performance:


            ● 1000W High-Torque Motor

             The heart of the FT2-H is its 52V 1000W rear hub motor, delivering massive torque for steep climbs and rapid acceleration. Whether you are navigating mud or soft sand, this high-power fat tire e-bike ensures a

             smooth, effortless ride.


            ● Dual Battery Technology

             Featuring two high-capacity 52V 10.5AH batteries (total 21Ah), the FT2-H sets a new standard for long-range fat tire ebikes. Switch between batteries or run them in parallel to reach destinations that were once out of

             range.


            ● Precision Handling

            Equipped with HD-E500 hydraulic disc brakes, the FT2-H provides professional-grade stopping power even in wet or icy conditions, making it a safe and reliable all-terrain e-bike.


    Built for the Elements:


            ● 26-Inch Fat Tires

             The oversized 4.0 fat tires act as a natural shock absorber, offering superior traction on unstable surfaces. It’s the perfect snow and sand e-bike for year-round exploration.


            ● Rugged Aluminum Frame

            The aircraft-grade aluminum alloy frame is lightweight yet durable, specifically designed as a heavy-duty electric bike capable of supporting adventurous riders and extra gear.


            ● Smart Riding Interface

             The M4 LCD display provides real-time data on speed, battery life, and mileage, ensuring you stay in control of your eco-friendly adventure vehicle at all times.


    Why Choose the FT2-H?


    From weekend trail-blazing to professional outdoor utility use, the FT2-H is more than just a bike—it’s a fat tire e-moto hybrid that redefines what’s possible on two wheels. As one of the best fat tire ebikes of 2026, it combines aggressive styling with industry-leading specs.
