MTB1-H 48V 500W rear hub motor mountain ebike

This lightweight mountain bike features a 500W high-torque motor and a 15Ah high-capacity battery. Built with a durable aluminum alloy frame, it is equipped with a premium hydraulic suspension fork with adjustable damping and a hydraulic disc brake system. Perfect for daily commuting and light off-road adventures.

Color: white

Overview Geometry Specs

Torque

70 Miles

500 W

720 Wh

20+ Mph

7-Speed

300 lb.

Hydraulic

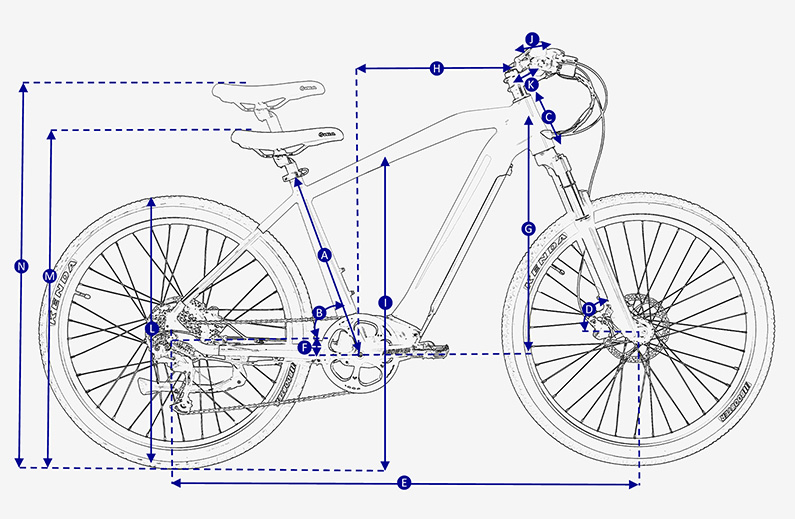

Geometry

SEAT TUBE LENGTH (mm)

483

SEAT TUBE ANGLE

HEAD TUBE LENGTH (mm)

142

HEAD TUBE ANGLE

WHEELBASE(mm)

1157

BOTTOM BRACKET DROP (mm)

STACK (mm)

617

REACH (mm)

400

STAND OVER HEIGHT (mm)

736

HANDLEBAR WIDTH (mm)

710

STEM LENGTH (mm)

WHEEL SIZE

27.5"

Min Saddle Height(mm)

840

Max Saddle Height(mm)

1020

Specs

Electric system

Motor

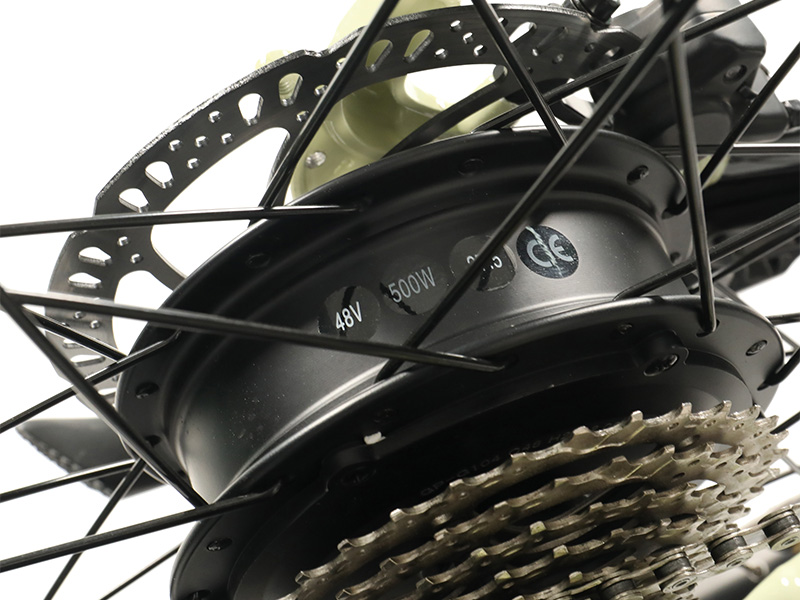

48V/500W brushless gear motor

Controller

48V/20A

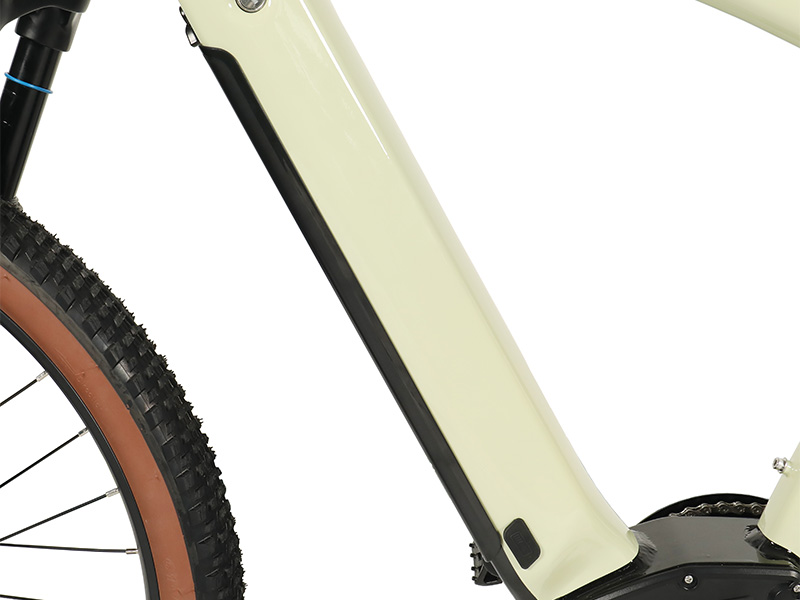

Battery

48V/15A LG/SAMSUNG 21700 720Wh

Charger

54.6V/3A

Throttle

Optional

Sensor

12 magnets speed sensor

Display

LCD colorful display

Headlight

Optional

Taillight

Optional

Main compents

Frame

Aluminium Alloy 6061

Front Fork

EXSHO hydraulic suspension lockable with adjustable damping

Tires

CST 27.5" *2.4"

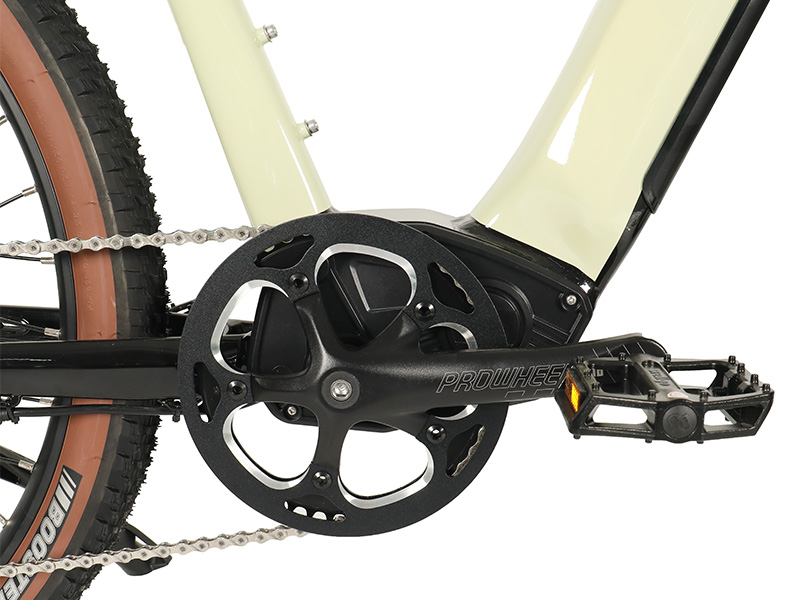

Chainwheel

PROWHEEL 46T

Chain

KMC Anti-Rust

Derailleur system

SHIMANO ALTUS 7/8-SPEED

Brake

WUXING hydraulic disc brake

Rotors

F:180mm R:180mm

Performance

Max speed

EU:25km/h, USA:32km/h

Max torque

55N.m

Range

Level 1: 100-110Km Level5：55-60km

Charging time

Max Load

120kg
